Re: Aufgaben und Übungen,

	b a x	b a y
0	0 0 0	0 0 1
1	0 0 1	0 0 0
2	0 1 0	1 0 0
3	0 1 1	0 1 0
4	1 0 0	1 0 1
5	1 0 1	1 1 1
6	1 1 0	0 0 1
7	1 1 1	0 0 1


	b a x	b
0	0 0 0	0
1	0 0 1	0
2	0 1 0	1
3	0 1 1	0
4	1 0 0	1
5	1 0 1	1
6	1 1 0	0
7	1 1 1	0

	b a x	a
0	0 0 0	0
1	0 0 1	0
2	0 1 0	0
3	0 1 1	1
4	1 0 0	0
5	1 0 1	1
6	1 1 0	0
7	1 1 1	0

	b a x	y
0	0 0 0	1
1	0 0 1	0
2	0 1 0	0
3	0 1 1	0
4	1 0 0	1
5	1 0 1	1
6	1 1 0	1
7	1 1 1	1




	b a x	b
2	0 1 0	1
4	1 0 0	1
5	1 0 1	1

	b a x	a
3	0 1 1	1
5	1 0 1	1

	b a x	y
0	0 0 0	1
4	1 0 0	1
5	1 0 1	1
6	1 1 0	1
7	1 1 1	1



	b a x	b
Gruppe 1:
2	0 1 0	1
4	1 0 0	1
Gruppe 2:
5	1 0 1	1

	b a x	a
Gruppe 2:
3	0 1 1	1
5	1 0 1	1

	b a x	y
Gruppe 0:
0	0 0 0	1
Gruppe 1:
4	1 0 0	1
Gruppe 2:
5	1 0 1	1
6	1 1 0	1
Gruppe 3:
7	1 1 1	1



	b a x	b
Gruppe 1:
2	0 1 0	1
4	1 0 0	1
Gruppe 2:
5	1 0 1	1

2		0 1 1
4;5		1 0 -

b <= (not b and a and x) or (b and not a)

	b a x	a
Gruppe 2:
3	0 1 1	1
5	1 0 1	1

a <= (not b and a and x) or (b and not a and x)

	b a x	y
Gruppe 0:
0	0 0 0	1
Gruppe 1:
4	1 0 0	1
Gruppe 2:
5	1 0 1	1
6	1 1 0	1
Gruppe 3:
7	1 1 1	1

0;4		- 0 0
4;5		1 0 -
4;6		1 - 0
5;7		1 - 1
6;7		1 1 -

Gruppe 1:
4;5		1 0 -
Gruppe 2:
6;7		1 1 -

4;5;6;7		1 - -

Gruppe 1:
4;6		1 - 0
Gruppe 2:
5;7		1 - 1

4;6;5;7		1 - -

0;4		- 0 0

0;4		- 0 0

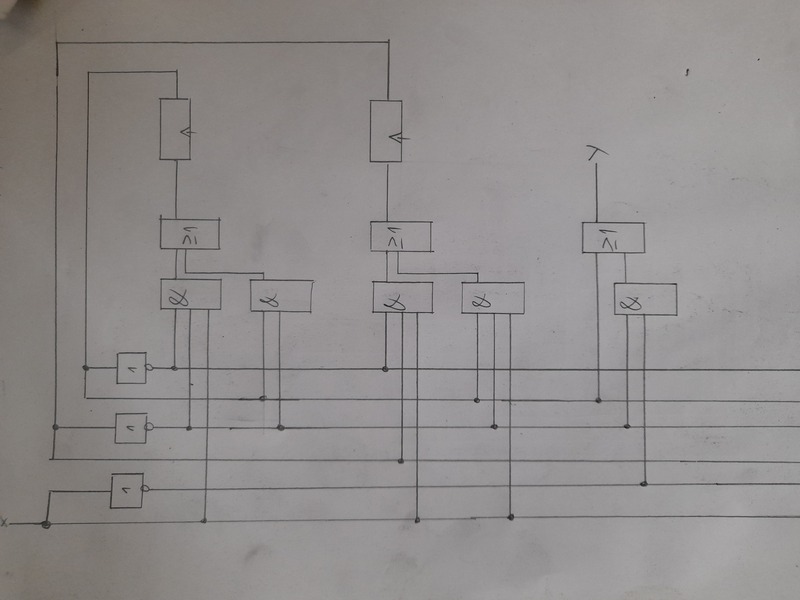

b <= (not b and a and x) or (b and not a)
a <= (not b and a and x) or (b and not a and x)
y <= b and (not a and not x)

entity meinautomatenuebergangsnetz is
begin
(
	bin, ain, x: in bit;
	bout, aout: out bit
);
port;

entity meinautomatenausgangsnetz is
begin
(
	bin, ain, x: in bit;
	y: out bit
);
port;

architecture verhalten of meintautomatenuebergangsnetz is
begin
	bout <= (not bin and ain and x) or (bin and not ain);
	aout <= (not bin and ain and x) or (bin and not ain and x)
end;

architecture verhalten of meinautomatenausgangsnetz is
begin
	y <= bin and (not ain and not x);
end;
