Re: Aufgaben und Übungen,

Da ist irgendein Fehler bei bout drin
	b a x	b a y
0	0 0 0	1 1 1
1	0 0 1	0 1 1
2	0 1 0	0 0 1
3	0 1 1	1 1 1
4	1 0 0	1 0 1
5	1 0 1	1 1 0
6	1 1 0	1 0 1
7	1 1 1	0 0 0


	b a x	b
0	0 0 0	1
1	0 0 1	0
2	0 1 0	0
3	0 1 1	1
4	1 0 0	1
5	1 0 1	1
6	1 1 0	1
7	1 1 1	0

	b a x	a
0	0 0 0	1
1	0 0 1	1
2	0 1 0	0
3	0 1 1	1
4	1 0 0	0
5	1 0 1	1
6	1 1 0	0
7	1 1 1	0

	b a x	y
0	0 0 0	1
1	0 0 1	1
2	0 1 0	1
3	0 1 1	1
4	1 0 0	1
5	1 0 1	0
6	1 1 0	1
7	1 1 1	0



	b a x	b
0	0 0 0	1
3	0 1 1	1
4	1 0 0	1
5	1 0 1	1
6	1 1 0	1

	b a x	a
0	0 0 0	1
1	0 0 1	1
3	0 1 1	1
5	1 0 1	1

	b a x	y
0	0 0 0	1
1	0 0 1	1
2	0 1 0	1
3	0 1 1	1
4	1 0 0	1
6	1 1 0	1


	b a x	b
Gruppe 0:
0	0 0 0	1
Gruppe 1:
4	1 0 0	1
Gruppe 2:
3	0 1 1	1
5	1 0 1	1
6	1 1 0	1

0:4		- 0 0
4:5		1 0 -
4:6		1 - 0
3		0 0 1

		0	4	5	6
0:4		*	*
4:5			*	*
4:6				*	*


		0	3	4	5	6
0:4		*		*
4:6					*	*
3			*

	b <= (not a and not x) or
			(b and not a) or
			(not b and not a and x);
	b <= not (
				(a or x) and
				(not b or x)
				(b or a or not x)
			);


	b a x	a
Gruppe 0:
0	0 0 0	1
Gruppe 1:
1	0 0 1	1
Gruppe 2:
3	0 1 1	1
5	1 0 1	1

0:1		0 0 -
1:3		0 - 1
1:5		- 0 1

		0	1	3	5
0:1		*	*
1:3			*	*
1:5			*		*

	a <= (not b and not a) or
			(not b and x) or
			(not a and x);
	a <= not (
			(b or a) and
			(b or not x) and
			(a or not x)
		);



	b a x	y
Gruppe 0:
0	0 0 0	1
Gruppe 1:
1	0 0 1	1
2	0 1 0	1
4	1 0 0	1
Gruppe 2:
3	0 1 1	1
6	1 1 0	1

0:1		0 0 -
0:2		0 - 0
0:4		- 0 0
1:3		0 - 1
2:3		0 1 -
2:6		- 1 0
4:6		1 - 0



0:4		- 0 0
2:6		- 1 0
1:3		0 - 1
4:6		1 - 0
0:2		0 - 0
2:3		0 1 -
0:1		0 0 -


Gruppe 0:
0:4		- 0 0
Gruppe 1:
2:6		- 1 0

Gruppe 0:
0:2		0 - 0
Gruppe 1:
1:3		0 - 1
4:6		1 - 0

Gruppe 0:
0:1		0 0 -
Gruppe 1:
2:3		0 1 -


Gruppe 0:
0:4		- 0 0
Gruppe 1:
2:6		- 1 0

0:4:2:6		- - 0

Gruppe 0:
0:2		0 - 0
Gruppe 1:
1:3		0 - 1
4:6		1 - 0

0:2:1:3		0 - -
0:2:4:6		- - 0

Gruppe 0:
0:1		0 0 -
Gruppe 1:
2:3		0 1 -

0:1:2:3		0 - -



0:4:2:6		- - 0
0:1:2:3		0 - -

y <= (not x or not b);

y <= (not (
			x and b
		))

	b <= (not a and not x) or
			(b and not x);
	a <= (not b and not a) or
			(not b and x) or
			(not a and x);
	y <= (not x or not b);

library ieee;
use ieee.std_logic_1164.all;

entity meinautomat0051uebergangsschaltnetz is
port (
	bout, aout: out std_logic;
	b, a, x: in std_logic
);
end;

architecture verhalten of meinautomat0051uebergangsschaltnetz is
begin
	bout <= (not a and not x) or
			(b and not x) or
			(not b and not a and x);
	aout <= (not b and not a) or
			(not b and x) or
			(not a and x);
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinautomat0051ausgangsschaltnetz is
port (
	y: out std_logic;
	b, a, x: in std_logic
);
end;

architecture verhalten of meinautomat0051ausgangsschaltnetz is
begin
	y <= (not x or not b);
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinautomat0051testbench is
port (
	bout: out std_logic;
	aout: out std_logic;
	y: out std_logic
);
end;

architecture verhalten of meinautomat0051testbench is
	component meinautomat0051uebergangsschaltnetz
	port (
		bout, aout: out std_logic;
		b, a, x: in std_logic
	);
	end component;
	component meinautomat0051ausgangsschaltnetz
	port (
		y: out std_logic;
		b, a, x: in std_logic
	);
	end component;
	signal b, a, x: std_logic;
begin
	sn1: meinautomat0051uebergangsschaltnetz PORT MAP (b=>b, a=>a, x=>x, bout=>bout, aout=>aout);
	sn2: meinautomat0051ausgangsschaltnetz PORT MAP (b=>b, a=>a, x=>x, y=>y);

	x <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	a <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	b <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

end;

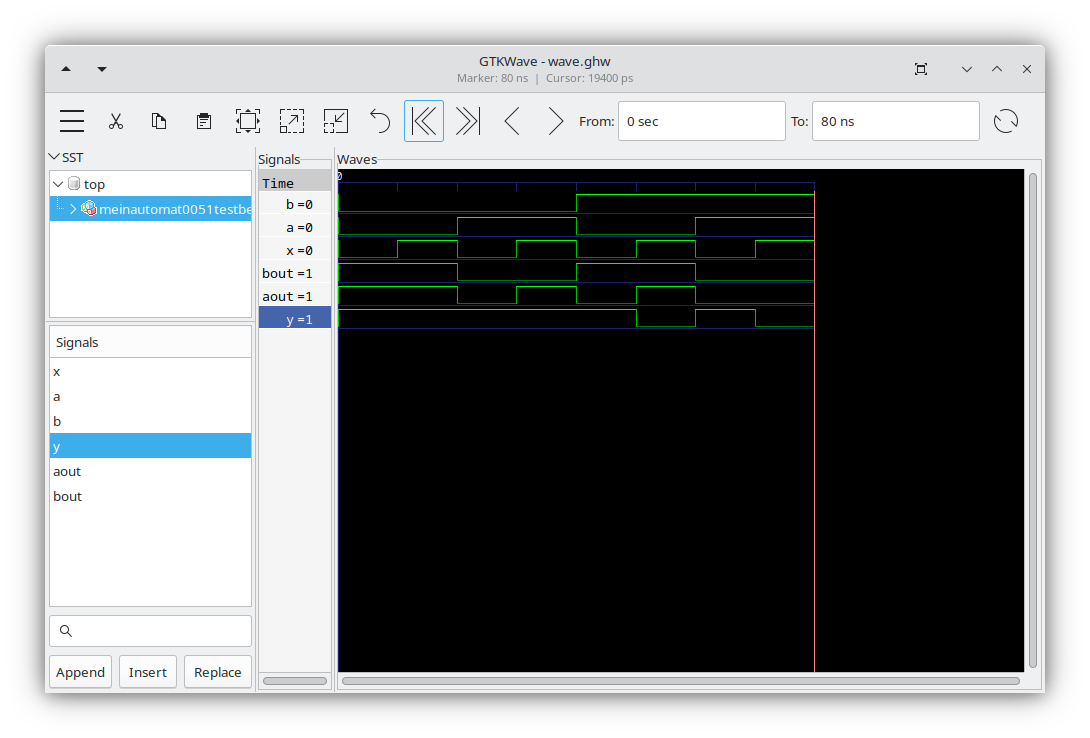

Image Screenshot_20231218_205200

	b a x	b a y
0	0 0 0	1 1 1
1	0 0 1	0 1 1
2	0 1 0	0 0 1
3	0 1 1	1 1 1
4	1 0 0	1 0 1
5	1 0 1	1 1 0
6	1 1 0	1 0 1
7	1 1 1	0 0 0

Image Screenshot_20231218_205200

library ieee;
use ieee.std_logic_1164.all;

entity meinschaltnetz0051 is
port (
    x3, x2, x1, x0: in std_logic;
    y: out std_logic
);
end;

architecture verhalten of meinschaltnetz0051 is
begin
    y <= (not x2 and not x1 and x0) or
            (x3 and x1 and not x0) or
            (x3 and x2);
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinschaltnetz0051testbench is
port (
    y: out std_logic
);
end;

architecture verhalten of meinschaltnetz0051testbench is
    component meinschaltnetz0051
    port (
        x3, x2, x1, x0: in std_logic;
        y: out std_logic
    );
    end component;
    signal x3, x2, x1, x0: std_logic;
begin
        sn: meinschaltnetz0051 PORT MAP (x3=>x3, x2=>x2, x1=>x1, x0=>x0, y=>y);

x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns, '1' after 90 ns, '0' after 100 ns, '1' after 110 ns, '0' after 120 ns, '1' after 130 ns, '0' after 140 ns, '1' after 150 ns;

x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '1' after 100 ns, '1' after 110 ns, '0' after 120 ns, '0' after 130 ns, '1' after 140 ns, '1' after 150 ns;

x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '0' after 100 ns, '0' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns;

x3 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '0' after 40 ns, '0' after 50 ns, '0' after 60 ns, '0' after 70 ns, '1' after 80 ns, '1' after 90 ns, '1' after 100 ns, '1' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns;

end;
