<?php
session_start ();
?>
<form method="POST" action="./form20240227.php">
<input type="text" name="2024022701"></input>
<input type="submit">
</form>
<?php
echo session_id () . "<br>n";
setcookie ("2024022702", "Dies ist Cookie 1", time () + 3600);
echo htmlentities (\$_POST ["2024022701"]) . "<br>n";
echo htmlentities (\$_COOKIE ["2024022702"]) . "<br>n";
echo htmlentities (\$_COOKIE ["2024022703"]) . "<br>n";
session_destroy ();
?>
POST http://localhost/mysql20240217/20240227/form20240227.php HTTP/1.1 host: localhost Cookie: 2024022703=Hallo, das ist Cookie 3 Content-Length: 38 Content-Type: application/x-www-form-urlencoded 2024022701=Hallo, dies ist Variable 1
Trying ::1... Connected to localhost. Escape character is '\^]'. HTTP/1.1 200 OK Date: Tue, 27 Feb 2024 17:23:03 GMT Server: Apache/2.4.57 (Debian) Set-Cookie: PHPSESSID=gk1n8jn5scue2c00m9ijms2am9; path=/ Expires: Thu, 19 Nov 1981 08:52:00 GMT Cache-Control: no-store, no-cache, must-revalidate Pragma: no-cache Set-Cookie: 2024022702=Dies%20ist%20Cookie%201; expires=Tue, 27 Feb 2024 18:23:03 GMT; Max-Age=3600 Vary: Accept-Encoding Content-Length: 223 Content-Type: text/html; charset=UTF-8 <form method="POST" action="./form20240227.php"> <input type="text" name="2024022701"></input> <input type="submit"> </form> gk1n8jn5scue2c00m9ijms2am9<br> Hallo, dies ist Variable 1 <br> <br> Hallo, das ist Cookie 3<br>
<?php
session_start ();
include ("/home/david/mysqldata.php");
\$db = new PDO ("mysql: host=localhost", \$MYSQL_USER, \$MYSQL_PASSWORD);
\$sql = "CREATE DATABASE mysql20240227" . session_id ();
\$db->query (\$sql);
\$sql = "USE mysql20240227" . session_id ();
\$db->query (\$sql);
\$sql = "CREATE TABLE a (x1 INTEGER, x2 INTEGER);";
\$db->query (\$sql);
\$sql = "CREATE TABLE b (y1 INTEGER, y2 INTEGER);";
\$db->query (\$sql);
\$sql = "INSERT INTO a (x1, x2) VALUES (0, 0);";
\$db->query (\$sql);
\$sql = "INSERT INTO a (x1, x2) VALUES (0, 1);";
\$db->query (\$sql);
\$sql = "INSERT INTO a (x1, x2) VALUES (1, 0);";
\$db->query (\$sql);
\$sql = "INSERT INTO a (x1, x2) VALUES (1, 1);";
\$db->query (\$sql);
\$sql = "INSERT INTO a (x1, x2) VALUES (2, 7);";
\$db->query (\$sql);
\$sql = "INSERT INTO b (y1, y2) VALUES (0, 1);";
\$db->query (\$sql);
\$sql = "INSERT INTO b (y1, y2) VALUES (1, 0);";
\$db->query (\$sql);
\$sql = "INSERT INTO b (y1, y2) VALUES (2, 7);";
\$db->query (\$sql);
\$sql = "SELECT x1, x2 FROM a;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt->fetch ())
echo \$row [0] . ", " . \$row [1] . "<br>n";
echo "<br>nn";
\$sql = "SELECT y1, y2 FROM b;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt->fetch ())
echo \$row [0] . ", " . \$row [1] . "<br>n";
echo "<br>n";
\$sql = "SELECT x1, x2, y1, y2 FROM a INNER JOIN b;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", " . \$row [1] . ", " . \$row [2] . ", " . \$row [3] . "<br>n";
echo "<br>n";
\$sql = "DROP DATABASE mysql20240227" . session_id ();
\$db->query (\$sql);
session_destroy ();
?>
0, 0<br> 0, 1<br> 1, 0<br> 1, 1<br> 2, 7<br> <br> 0, 1<br> 1, 0<br> 2, 7<br> <br> 0, 0, 0, 1<br> 0, 0, 1, 0<br> 0, 0, 2, 7<br> 0, 1, 0, 1<br> 0, 1, 1, 0<br> 0, 1, 2, 7<br> 1, 0, 0, 1<br> 1, 0, 1, 0<br> 1, 0, 2, 7<br> 1, 1, 0, 1<br> 1, 1, 1, 0<br> 1, 1, 2, 7<br> 2, 7, 0, 1<br> 2, 7, 1, 0<br> 2, 7, 2, 7<br> <br>
<?php
session_start ();
include ("/home/david/mysqldata.php");
\$db = new PDO ("mysql: host=localhost", \$MYSQL_USER, \$MYSQL_PASSWORD);
\$sql = "CREATE DATABASE q20240227" . session_id ();
\$db->query (\$sql);
\$sql = "USE q20240227" . session_id ();
\$db->query (\$sql);
\$sql = "CREATE TABLE a (x INTEGER);";
\$db->query (\$sql);
\$sql = "CREATE TABLE b (x INTEGER);";
\$db->query (\$sql);
\$sql = "CREATE TABLE c (x INTEGER);";
\$db->query (\$sql);
for (\$i = 0; \$i < 24; \$i++) {
\$sql = "INSERT INTO a (x) VALUES ("" . rand () % 32 . "");";
\$db->query (\$sql);
\$sql = "INSERT INTO b (x) VALUES ("" . rand () % 80 . "");";
\$db->query (\$sql);
\$sql = "INSERT INTO c (x) VALUES ("" . rand () % 64 . "");";
\$db->query (\$sql);
}
\$sql = "SELECT x FROM (SELECT x FROM a UNION SELECT x FROM b) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (SELECT x FROM a UNION SELECT x FROM c) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (SELECT x FROM b UNION SELECT x FROM c) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (SELECT x FROM a INTERSECT SELECT x FROM b) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (SELECT x FROM a INTERSECT SELECT x FROM c) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (SELECT x FROM b INTERSECT SELECT x FROM c) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (
SELECT x FROM (SELECT x FROM a UNION SELECT x FROM b) x
INTERSECT
SELECT x FROM c
) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (
SELECT x FROM (SELECT x FROM a INTERSECT SELECT x FROM c) x
UNION
SELECT x FROM (SELECT x FROM b INTERSECT SELECT x FROM c) x
) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (
SELECT x FROM (SELECT x FROM a UNION SELECT x FROM c) x
INTERSECT
SELECT x FROM b
) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (
SELECT x FROM (SELECT x FROM a INTERSECT SELECT x FROM b) x
UNION
SELECT x FROM (SELECT x FROM c INTERSECT SELECT x FROM b) x
) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (
SELECT x FROM (SELECT x FROM b UNION SELECT x FROM c) x
INTERSECT
SELECT x FROM a
) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "SELECT x FROM (
SELECT x FROM (SELECT x FROM b INTERSECT SELECT x FROM a) x
UNION
SELECT x FROM (SELECT x FROM c INTERSECT SELECT x FROM a) x
) x;";
\$stmt = \$db->query (\$sql);
while (\$row = \$stmt -> fetch ())
echo \$row [0] . ", ";
echo "<br>n";
\$sql = "DROP DATABASE q20240227" . session_id ();
\$db->query (\$sql);
session_destroy ();
?>
21, 28, 20, 18, 29, 14, 8, 25, 24, 0, 10, 1, 3, 9, 49, 65, 54, 57, 74, 77, 62, 71, 4, 64, 36, 22, 37, 30, 78, 12, <br> 21, 28, 20, 18, 29, 14, 8, 25, 24, 0, 10, 1, 3, 9, 27, 7, 26, 55, 35, 32, 51, 41, 50, 6, 5, 61, 38, 43, 2, 36, <br> 49, 65, 54, 57, 74, 9, 0, 77, 62, 71, 4, 64, 36, 14, 24, 22, 10, 37, 30, 78, 12, 27, 7, 26, 55, 35, 25, 32, 51, 41, 21, 50, 6, 8, 5, 61, 38, 43, 2, <br> 14, 24, 0, 10, 9, <br> 21, 14, 8, 25, 0, 10, <br> 0, 36, 14, 10, <br> 21, 14, 8, 25, 0, 10, 36, <br> 21, 14, 8, 25, 0, 10, 36, <br> 14, 24, 0, 10, 9, 36, <br> 14, 24, 0, 10, 9, 36, <br> 9, 0, 14, 24, 10, 25, 21, 8, <br> 9, 0, 14, 24, 10, 25, 21, 8, <br>
#!/bin/bash echo "Hallo Welt"
Hallo Welt
#!/bin/bash
i=0
while [ \$i -lt 10 ]
do
echo "Hallo zum \$((\$i+1))."
i=\$((\$i+1))
done
Hallo zum 1. Hallo zum 2. Hallo zum 3. Hallo zum 4. Hallo zum 5. Hallo zum 6. Hallo zum 7. Hallo zum 8. Hallo zum 9. Hallo zum 10.
#!/bin/bash
if [[ "\$1" == "David" \&\& "\$2" == "Vajda" ]]
then
echo "Das bin ich"
elif [ "\$1" == "David Vajda" ]
then
echo "Das bin ich"
elif [[ "\$1" == "David" \&\& -z "\$2" ]]
then
echo "Das koennte ich sein"
elif [[ "\$1" == "Vajda" \&\& -z "\$2" ]]
then
echo "Das koennte ich sein"
else
echo "Das bin ich nicht"
fi
#!/bin/bash /bin/bash ifthenelse.sh "David" "Vajda" >> ifthenelse.out /bin/bash ifthenelse.sh "David Vajda" >> ifthenelse.out /bin/bash ifthenelse.sh "David" >> ifthenelse.out /bin/bash ifthenelse.sh "Vajda" >> ifthenelse.out /bin/bash ifthenelse.sh "David" "Anton" >> ifthenelse.out /bin/bash ifthenelse.sh "Vajda" "Anton" >> ifthenelse.out /bin/bash ifthenelse.sh "David Anton" >> ifthenelse.out /bin/bash ifthenelse.sh "Max Mustermann" >> ifthenelse.out
Das bin ich Das bin ich Das koennte ich sein Das koennte ich sein Das bin ich nicht Das bin ich nicht Das bin ich nicht Das bin ich nicht
#!/bin/bash
a=(Hallo Welt)
a+=(sagt David Vajda)
i=0
while [ \$i -lt 7 ]
do
echo "\${a[\$i]}"
i=\$((\$i+1))
done
for s in "\${a[@]}"
do
echo "\$s"
done
Hallo Welt sagt David Vajda Hallo Welt sagt David Vajda
#!/bin/bash
l=\$(ls)
for s in \$l
do
echo "\$s"
done
array.out array.sh exec.out exec.sh hello.out hello.sh ifthenelseexec.sh ifthenelse.out ifthenelse.sh while.out while.sh
So, ich gehe noch mal kurz Zigaretten holen, und danach mache ich die schriftliche Multiplikation und Division, IEEE-754, und so weiter.
Gut, jetzt komme IEEE-754-Std. Umrechnung.
12.78125 12/2 = 6 Rest 0 6/2 = 3 Rest 0 3/2 = 1 Rest 1 1/2 = 0 Rest 1 0.78125 * 2 = 1.56250 1 0.56250 * 2 = 1.1250 1 0.125 * 2 = 0.25 0 0.25 * 2 = 0.5 0 0.5 * 2 = 1.0 1 0.78125 0.78125 -------- 1.56250 0.56250 0.56250 ------ 1.1250 1100,11001 1100,11001 = 1,10011001 * 2\^3 normalisiert: 10011001 127 + 3 = 130 130 / 2 = 65 Rest 0 65 / 2 = 32 Rest 1 32 / 2 = 16 Rest 0 16 / 2 = 8 Rest 0 8 / 2 = 4 Rest 0 4 / 2 = 2 Rest 0 2 / 2 = 1 Rest 0 1 / 2 = 0 Rest 1 [0][10000010][10011001] 0100.0001.0100.1100.1000.0000.0000 0x414C800
Gut, kurz eine Rauchen, dann kommen, die schriftliche Dinger, auch Logarithmus berechnen, mit dem Taschenrechner
Heute kommt ausserdem auch - wie es jeden Tag sein muss

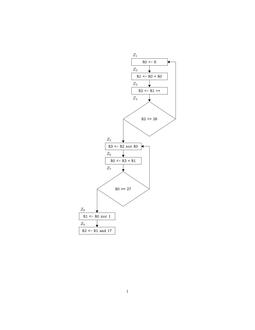

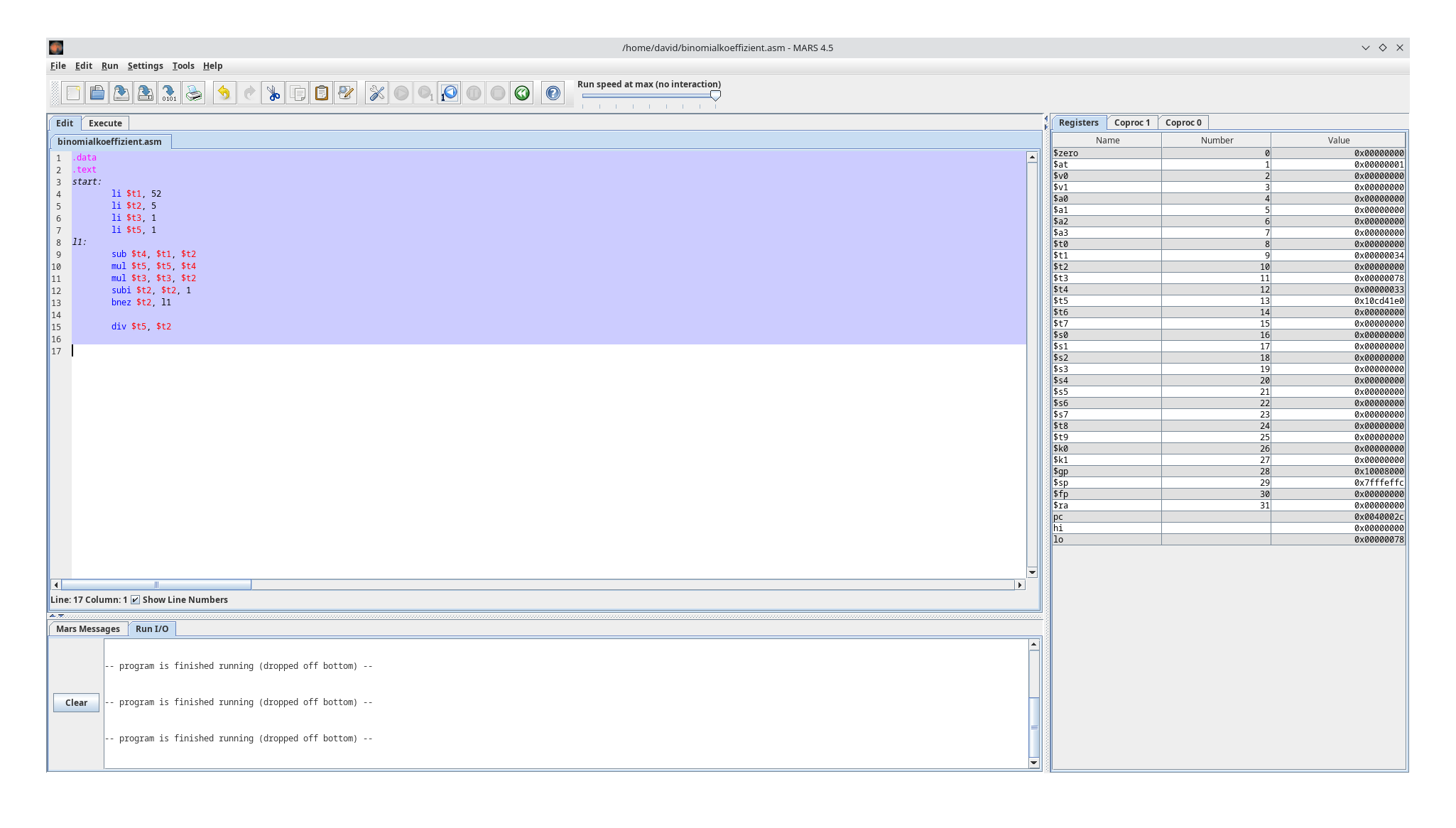

- Komplexes Schaltwerk - ASM-Diagramme - Kurzes MIPS Assembler Programm

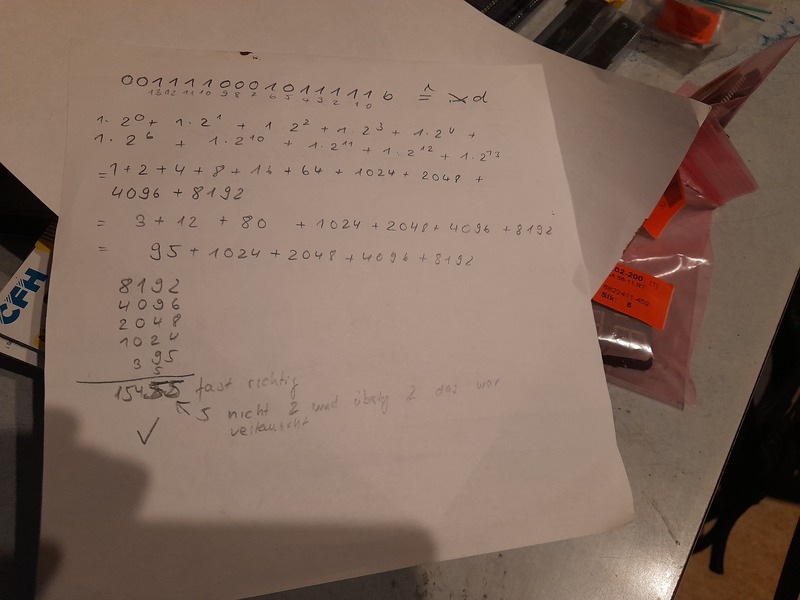

1.) Rechne die Zahl in binaer Darstellung in eine Dezimale Darstellung um
0011110001011111b 15455d

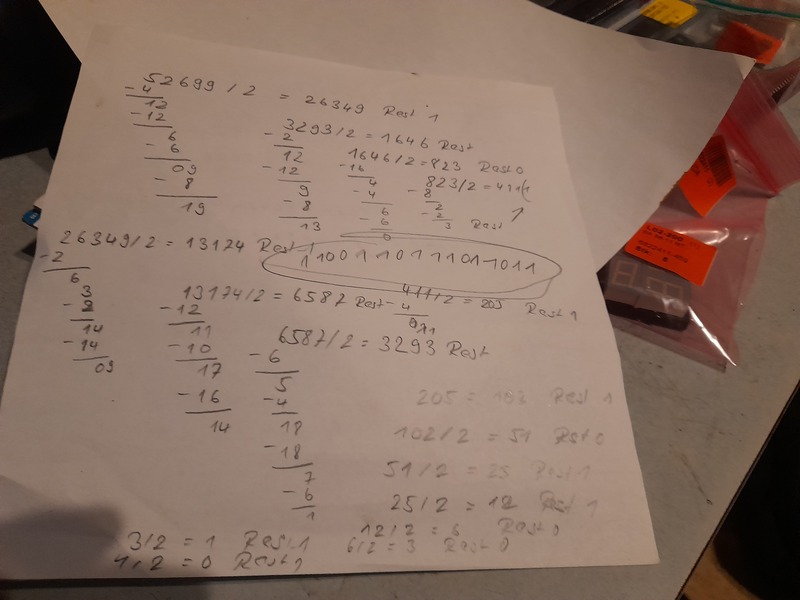

2.) Rechne die Zahl in dezimal darstellung in eine Binaerdarstellung um
52699 1100110111011011
3.) Addiere die drei Zahlen schriftlich
26850
+ 21334
+ 34580
-----------------
82764
4.) Subtrahiere die letzten drei Zahlen schriftlich von der ersten schriftlich
17466
- 304
- 11055
- 5459
-----------------
648
5.) Rechne die Zahl ins zweier komplement um, mit 8 Bit - und subtrahiere diese zahl von der ersten und rechne das Ergebnis nach dezimal
-90 -45 = -135
10100110 11010011 = 01111001
6.) Multipliziere die zwei Zahlen schriftlich
53664*56775 = 3046773600
7.) Dividiere die zwei Zahlen schriftlich
6066/49217 = 0
8.) Errechne x Logarithmisch mit dem Taschenrechner
31743\^x = 1549428720
0 0 0 0 0 0
1 0 0 0 1 1
2 0 0 1 0 1
3 0 0 1 1 0
4 0 1 0 0 1
5 0 1 0 1 0
6 0 1 1 0 0
7 0 1 1 1 1
8 1 0 0 0 0
9 1 0 0 1 0
10 1 0 1 0 1
11 1 0 1 1 0
12 1 1 0 0 0
13 1 1 0 1 0
14 1 1 1 0 1
15 1 1 1 1 1
1 0 0 0 1 1
2 0 0 1 0 1
4 0 1 0 0 1
7 0 1 1 1 1
10 1 0 1 0 1
14 1 1 1 0 1
15 1 1 1 1 1
Gruppe 1:
1 0 0 0 1 1
2 0 0 1 0 1
4 0 1 0 0 1
Gruppe 2:
10 1 0 1 0 1
Gruppe 3:
7 0 1 1 1 1
14 1 1 1 0 1
Gruppe 4:
15 1 1 1 1 1
1 0 0 0 1
2:10 - 0 1 0
4 0 1 0 0
10:14 1 - 1 0
7:15 - 1 1 1
14:15 1 1 1 -
1 0 0 0 1
4 0 1 0 0
2:10 - 0 1 0
7:15 - 1 1 1
10:14 1 - 1 0
14:15 1 1 1 -
1 2 4 7 10 14 15
1 *
4 *
2:10 * *
7:15 * *
10:14 * *
14:15 * *
1 2 4 7 10 14 15
1 *
4 *
2:10 * *
7:15 * *
10:14 * *
1 0 0 0 1
4 0 1 0 0
2:10 - 0 1 0
7:15 - 1 1 1
10:14 1 - 1 0
y <= (not x3 and not x2 and not x1 and x0) or
(not x3 and x2 and not x1 and not x0) or
(not x2 and x1 and not x0) or
(x2 and x1 and x0) or
(x3 and x1 and not x0);
y <= not (
(x3 or x2 or x1 or not x0) and
(x3 or not x2 or x1 or x0) and
(x2 or not x1 or x0) and
(not x2 or not x1 or not x0) and
(not x3 or not x1 or x0)
);
library ieee;
use ieee.std_logic_1164.all;
entity quine20240227 is
port (
x3, x2, x1, x0: in std_logic;
y: out std_logic
);
end;
architecture behaviour of quine20240227 is
begin
y <= (not x3 and not x2 and not x1 and x0) or
(not x3 and x2 and not x1 and not x0) or
(not x2 and x1 and not x0) or
(x2 and x1 and x0) or
(x3 and x1 and not x0);
end;
library ieee;
use ieee.std_logic_1164.all;
entity quine20240227testbench is
port (
y: out std_logic
);
end;
architecture behaviour of quine20240227testbench is
component quine20240227
port (
x3, x2, x1, x0: in std_logic;
y: out std_logic
);
end component;
signal x3, x2, x1, x0: std_logic;
begin
q: quine20240227 PORT MAP (x3=>x3, x2=>x2, x1=>x1, x0=>x0, y=>y);
library ieee;
use ieee.std_logic_1164.all;
entity quine20240227 is
port (
x3, x2, x1, x0: in std_logic;
y: out std_logic
);
end;
architecture behaviour of quine20240227 is
begin
y <= (not x3 and not x2 and not x1 and x0) or
(not x3 and x2 and not x1 and not x0) or
(not x2 and x1 and not x0) or
(x2 and x1 and x0) or
(x3 and x1 and not x0);
end;
library ieee;
use ieee.std_logic_1164.all;
entity quine20240227testbench is
port (
y: out std_logic
);
end;
architecture behaviour of quine20240227testbench is
component quine20240227
port (
x3, x2, x1, x0: in std_logic;
y: out std_logic
);
end component;
signal x3, x2, x1, x0: std_logic;
begin
q: quine20240227 PORT MAP (x3=>x3, x2=>x2, x1=>x1, x0=>x0, y=>y);

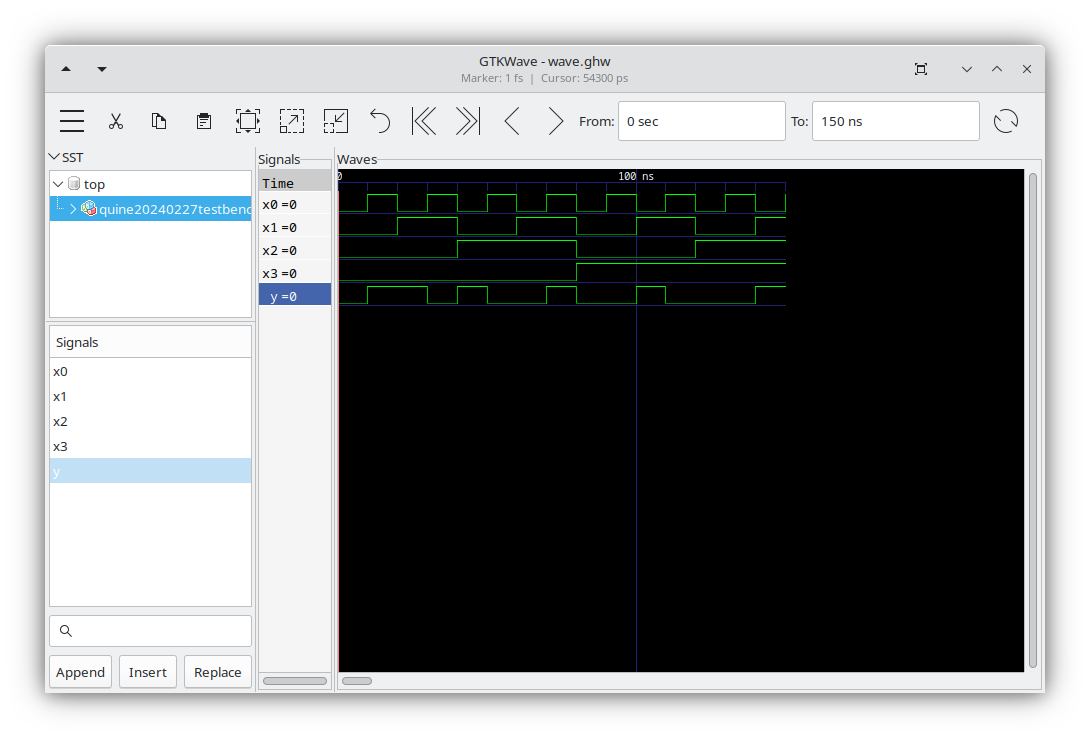

x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns, '1' after 90 ns, '0' after 100 ns, '1' after 110 ns, '0' after 120 ns, '1' after 130 ns, '0' after 140 ns, '1' after 150 ns;
x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '1' after 100 ns, '1' after 110 ns, '0' after 120 ns, '0' after 130 ns, '1' after 140 ns, '1' after 150 ns;
x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '0' after 100 ns, '0' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns;
x3 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '0' after 40 ns, '0' after 50 ns, '0' after 60 ns, '0' after 70 ns, '1' after 80 ns, '1' after 90 ns, '1' after 100 ns, '1' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns;
end;

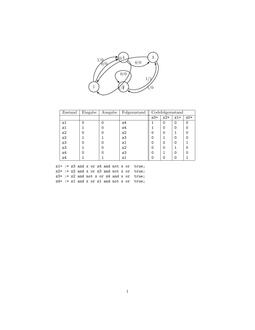

So, ich mache die Übrigen Aufgaben weiter. Zunächst die Zustandskodierung/Minimierung. Am Ende ein MIPS Programm. Ich denke, ich werde den Binomialkoeffizienten mit MIPS berechnen.
Zustand Folge-Zustand fuer Ausgang x=0 x=1 1 4 1 0 2 3 4 1 3 4 2 1 4 2 3 1 5 3 3 1 6 4 3 0 7 4 4 1 8 7 2 1 1 4 1 0 6 4 3 0 2 3 4 1 3 4 2 1 4 2 3 1 5 3 3 1 7 4 4 1 8 7 2 1 (1,6) (4,4) (1,3) (2,3) (3,4) (4,2) (2,4) (3,2) (4,3) (2,5) (3,3) (4,3) (2,7) (3,4) (4,4) (2,8) (3,7) (4,2) (3,4) (4,2) (2,3) (3,5) (4,3) (2,3) (3,7) (4,4) (2,4) (3,8) (4,7) (2,2) (4,5) (2,3) (3,3) (4,7) (2,4) (3,4) (4,8) (2,7) (3,2) (5,7) (3,4) (3,4) (5,8) (3,7) (3,2) (7,8) (7,7) (3,2) (1,6) (4,4) (1,3) (2,3) (3,4) (2,4) (2,4) (2,3) (3,4) (2,5) (3,3) (3,4) (2,7) (3,4) (4,4) (2,8) (3,7) (2,4) (3,4) (2,4) (2,3) (3,5) (3,4) (2,3) (3,7) (4,4) (2,4) (3,8) (4,7) (2,2) (4,5) (2,3) (3,3) (4,7) (2,4) (3,4) (4,8) (2,7) (2,3) (5,7) (3,4) (3,4) (5,8) (3,7) (2,3) (7,8) (7,7) (2,3) (1,6) (1,3) (2,3) (3,4) (2,4) (2,4) (2,3) (3,4) (2,5) (3,4) (2,7) (3,4) (2,8) (3,7) (2,4) (3,4) (2,4) (2,3) (3,5) (3,4) (2,3) (3,7) (2,4) (3,8) (4,7) (4,5) (2,3) (4,7) (2,4) (3,4) (4,8) (2,7) (2,3) (5,7) (3,4) (3,4) (5,8) (3,7) (2,3) (7,8) (7,7) (2,3) --(1,6) --(1,3) (2,3) (3,4) (2,4) (2,4) (2,3) (3,4) (2,5) (3,4) (2,7) (3,4) (2,8) (3,7) (2,4) (3,4) (2,4) (2,3) (3,5) (3,4) (2,3) (3,7) (2,4) (3,8) (4,7) (4,5) (2,3) (4,7) (2,4) (3,4) (4,8) (2,7) (2,3) (5,7) (3,4) (5,8) (3,7) (2,3) (7,8) (2,3) (2,3) (3,4) (2,4) (2,4) (2,3) (3,4) (2,5) (3,4) (2,7) (3,4) (2,8) (3,7) (2,4) (3,4) (2,4) (2,3) (3,5) (3,4) (2,3) (3,7) (2,4) (3,8) (4,7) (4,5) (2,3) (4,7) (2,4) (3,4) (4,8) (2,7) (2,3) (5,7) (3,4) (5,8) (3,7) (2,3) (7,8) (2,3)
Zustand Eingabe Ausgabe Folgezustand CodeFolgezustand
z1+ z2+ z3+ z4+
z1 0 0 z4 0 0 0 1
z1 1 0 z4 0 0 0 1
z2 0 0 z2 0 1 0 0
z2 1 1 z3 0 0 1 0
z3 0 0 z1 1 0 0 0
z3 1 0 z2 0 1 0 0
z4 0 0 z3 0 0 1 0
z4 1 1 z1 1 0 0 0
z1+ := z3 and not x or z4 and x
z2+ := z2 and not x or z3 and x
z3+ := z2 and x or z4 and not x
z4+ := z1
y := z2 and x or z4 and x
https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/automat20240227.txt">
https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/automat20240227.pdf">
https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/automat20240227.tex">
https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/automat20240227.csv">
https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/asm20240227.tex">https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/asm20240227.tex</URL>
\begin{verbatim}https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/asm20240227.pdf">https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2024-02-27/asm20240227.pdf</URL>
\includegraphics[width=\textwidth]{./david4/2024-02-27/20240227_212609.jpg}
\includegraphics[width=\textwidth]{./david4/2024-02-27/20240227_213659.jpg}
So, jetzt kurze Raucherpause, dann kommt das MIPS32 Assembler Programm.
So, jetzt kommt der MIPS. Zun"achst muss ich etwas tun, was ich schon immer mal tun wollte. Ich muss auf dem Taschenrechner Texas Instruments TI-30 nachgucken, wie geht der Binomialkoeffizient. Gut, wenn ich den habe, kann ich nach voll ziehen, ob MIPS das richtig ausgerechnet hat.
\includegraphics[width=\textwidth]{./david4/2024-02-27/20240227_215737.jpg}
Es funktioniert generell schon mal, mit einem Problem - der mult Befehl tut nicht. Es geht, aber der mult Befehl tut nicht, also mal gucken
\begin{verbatim}
.data
.text
start:
li \$t1, 52
li \$t2, 5
li \$t3, 1
li \$t5, 1
l1:
sub \$t4, \$t1, \$t2
mult \$t5, \$t4
mult \$t3, \$t2
subi \$t2, \$t2, 1
bnez \$t2, l1
div \$t5, \$t2
.data .text start: li \$t1, 52 li \$t2, 5 li \$t3, 1 li \$t5, 1 l1: sub \$t4, \$t1, \$t2 mul \$t5, \$t5, \$t4 mul \$t3, \$t3, \$t2 subi \$t2, \$t2, 1 bnez \$t2, l1 div \$t5, \$t2
