1.) Rechne die Zahl in binaer Darstellung  in eine Dezimale Darstellung um
0101000001000011b 20547d
2.) Rechne die Zahl in dezimal darstellung in eine Binaerdarstellung um
23549 0101101111111101
3.) Addiere die drei Zahlen schriftlich
            19332
+           39822
+           27191
-----------------
            86345
4.) Subtrahiere die letzten drei Zahlen schriftlich von der ersten schriftlich
            32036
-            8625
-            6388
-           12983
-----------------
             4040
5.) Rechne die Zahl ins zweier komplement um, mit 8 Bit - und subtrahiere diese zahl von der ersten und rechne das Ergebnis nach dezimal
52 -14 = 38
00110100 11110010 = 00100110
6.) Multipliziere die zwei Zahlen schriftlich
48875*45420 = 2219902500
7.) Dividiere die zwei Zahlen schriftlich
4072/35361 = 0
8.) Errechne x Logarithmisch mit dem Taschenrechner
38035^x = 662990462
9.) Errechne mit dem Abakus
8 + 61 + 95 + 15 + 81 + 75 + 19 + 1 + 27 + 70
10.) Errechne mit dem Abakus
827 + 3590 + 362 + 6298 + 7019 + 3249 + 433 + 5811 + 3639 + 5889

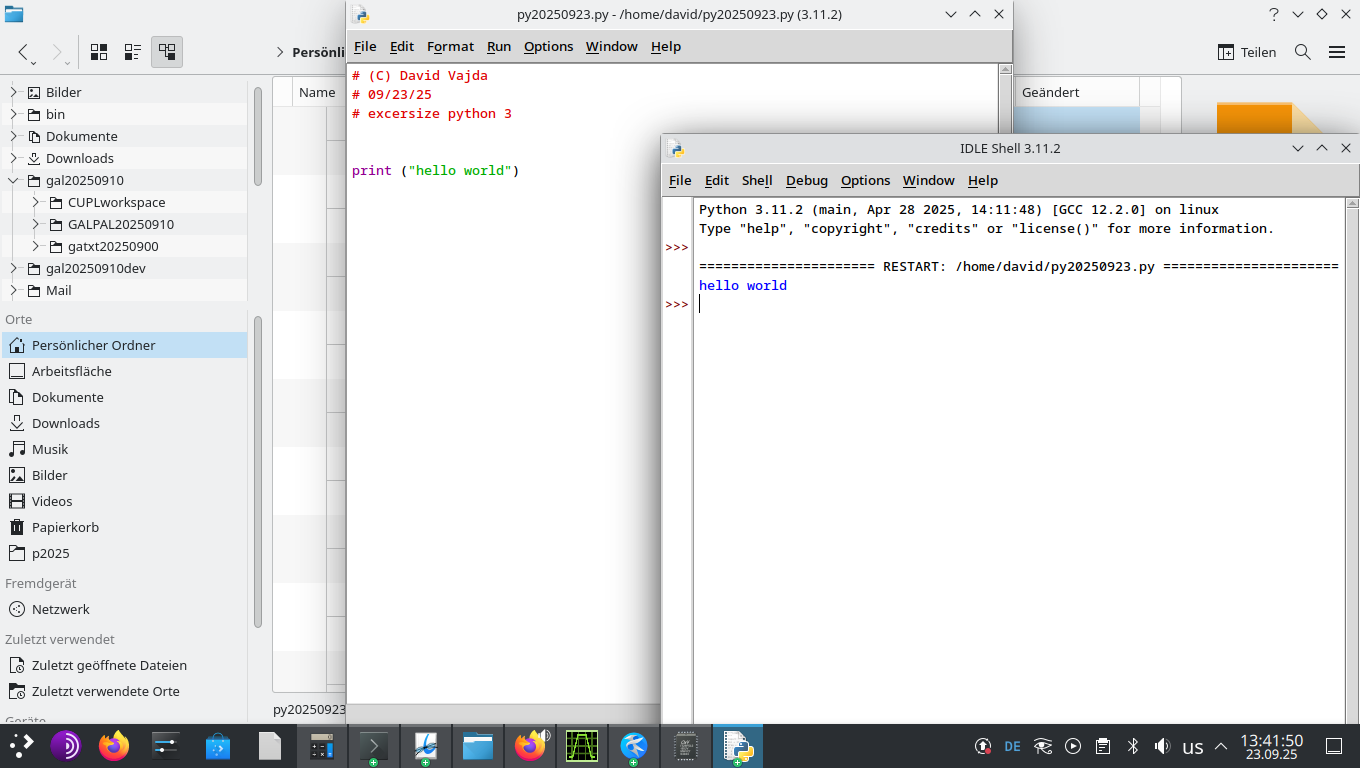

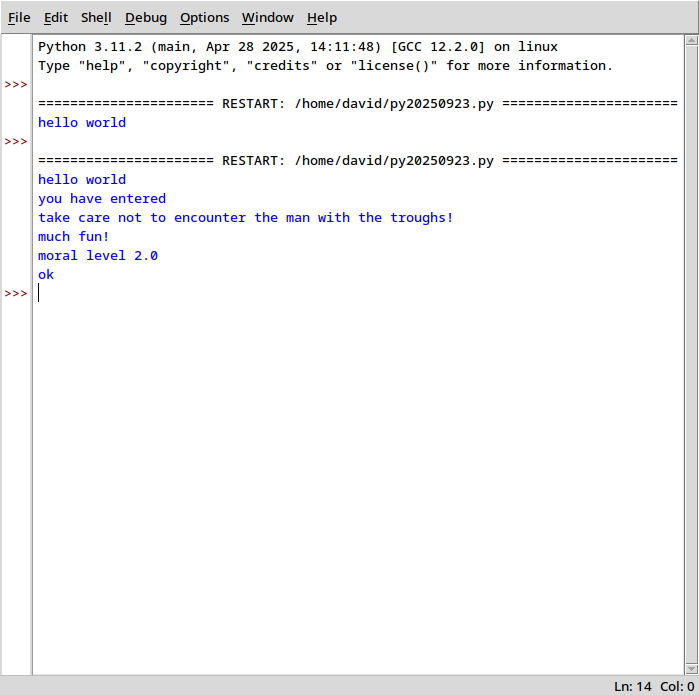

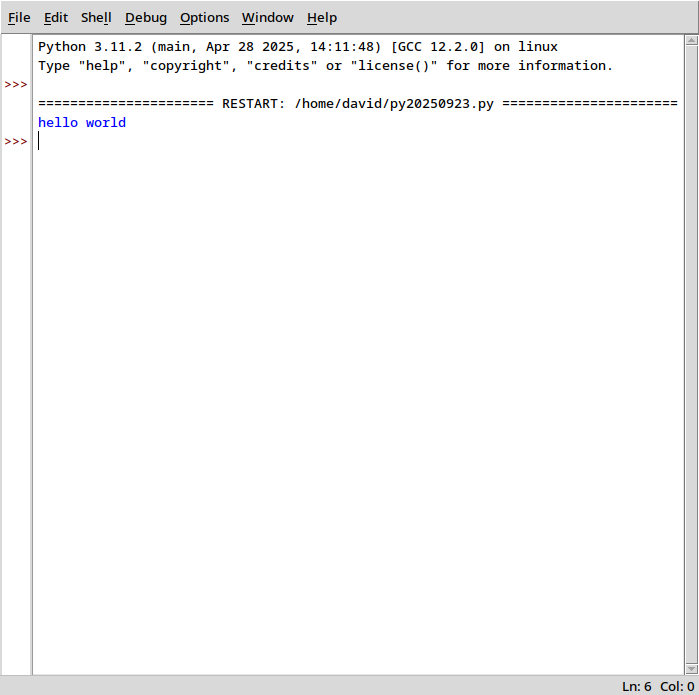

Python 3.11.2 (main, Apr 28 2025, 14:11:48) [GCC 12.2.0] on linux
Type "help", "copyright", "credits" or "license()" for more information.
>>>
====================== RESTART: /home/david/py20250923.py ======================
hello world
>>>
====================== RESTART: /home/david/py20250923.py ======================
hello world
you have entered
take care not to encounter the man with the troughs!
much fun!
moral level 2.0
ok
# (C) David Vajda
# 09/23/25
# excersize python 3

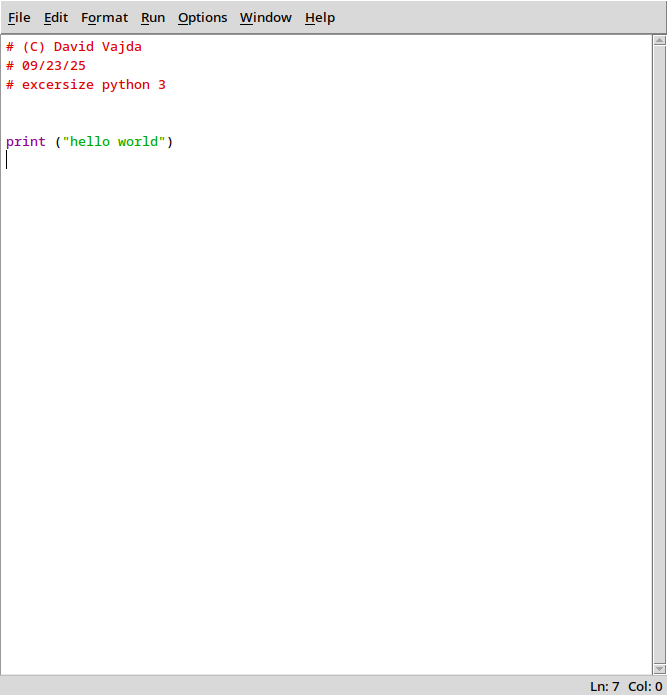

print ("hello world")

print ("you have entered")

print ("take care not to encounter the man with the troughs!")

print ("much fun!")

print ("moral level 2.0")

print ("ok")

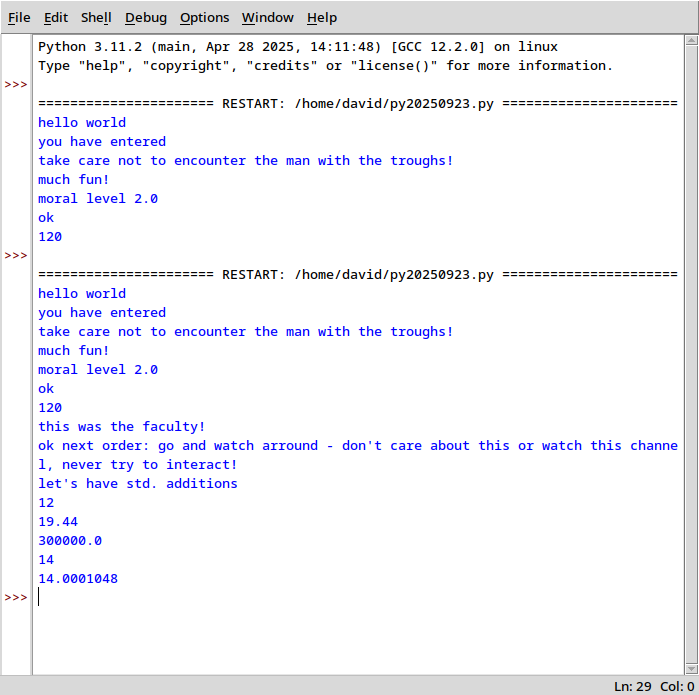

n = 5
m = 1
while n > 0:
    m = m * n
    n = n - 1;
print (m)

print ("this was the faculty!")

print ("ok next order: go and watch arround - don't care about this or watch this channel, never try to interact!")

print ("let's have std. additions")

x = 5 + 7
y = x + 4.3 + 3.14
x1 = x/2 * 50000
x2 = 4 + 4 + 6

print (x)
print (y)
print (x1)
print (x2)

print ((x+y)/x1+x2)

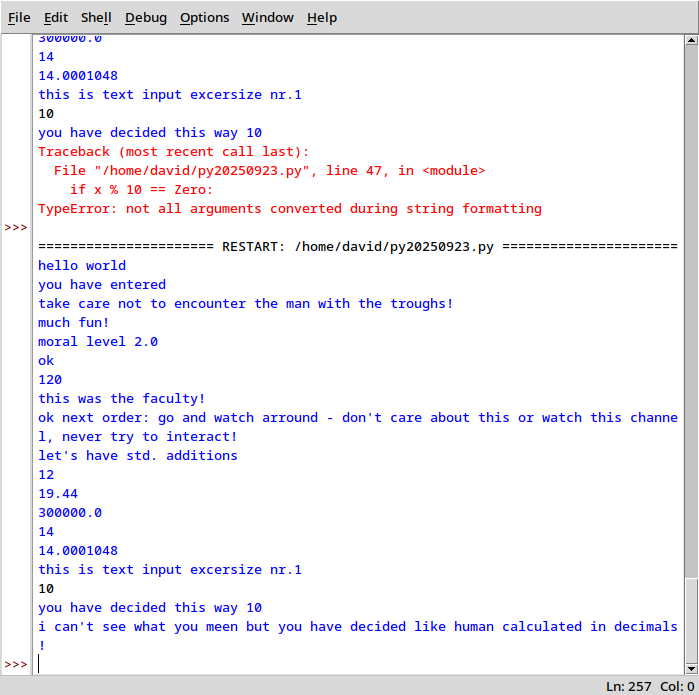

print ("this is text input excersize nr.1")
x = int(input ())
Zero = 0
print ("you have decided this way", x)
if x % 10 == Zero:
    print ("i can't see what you meen but you have decided like human calculated in decimals!")
else:
    print ("we will see")


                                GAL16V8

                          -------\___/-------
                      /OE |  1           20 | VCC
                          |                 |
                       X2 |  2           19 | NC
                          |                 |
                       X1 |  3           18 | NC
                          |                 |
                       X0 |  4           17 | NC
                          |                 |
                       NC |  5           16 | NC
                          |                 |
                       NC |  6           15 | NC
                          |                 |
                       NC |  7           14 | NC
                          |                 |
                       NC |  8           13 | NC
                          |                 |
                       NC |  9           12 | Y
                          |                 |
                      GND | 10           11 | CLK
                          -------------------


Pin 19 = NC           XOR = 0   AC1 = 0
  0  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  1  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  2  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  3  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  4  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  5  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  6  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  7  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 18 = NC           XOR = 0   AC1 = 0
  8  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
  9  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 10  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 11  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 12  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 13  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 14  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 15  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 17 = NC           XOR = 0   AC1 = 0
 16  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 17  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 18  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 19  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 20  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 21  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 22  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 23  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 16 = NC           XOR = 0   AC1 = 0
 24  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 25  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 26  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 27  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 28  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 29  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 30  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 31  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 15 = NC           XOR = 0   AC1 = 0
 32  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 33  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 34  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 35  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 36  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 37  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 38  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 39  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 14 = NC           XOR = 0   AC1 = 0
 40  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 41  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 42  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 43  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 44  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 45  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 46  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 47  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 13 = NC           XOR = 0   AC1 = 0
 48  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 49  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 50  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 51  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 52  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 53  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 54  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 55  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Pin 12 = Y            XOR = 1   AC1 = 0
 56  -x-- -x-- ---- ---- ---- ---- ---- ----
 57  x--- x--- ---- ---- ---- ---- ---- ----
 58  ---- -x-- x--- ---- ---- ---- ---- ----
 59  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 60  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 61  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 62  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx
 63  xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

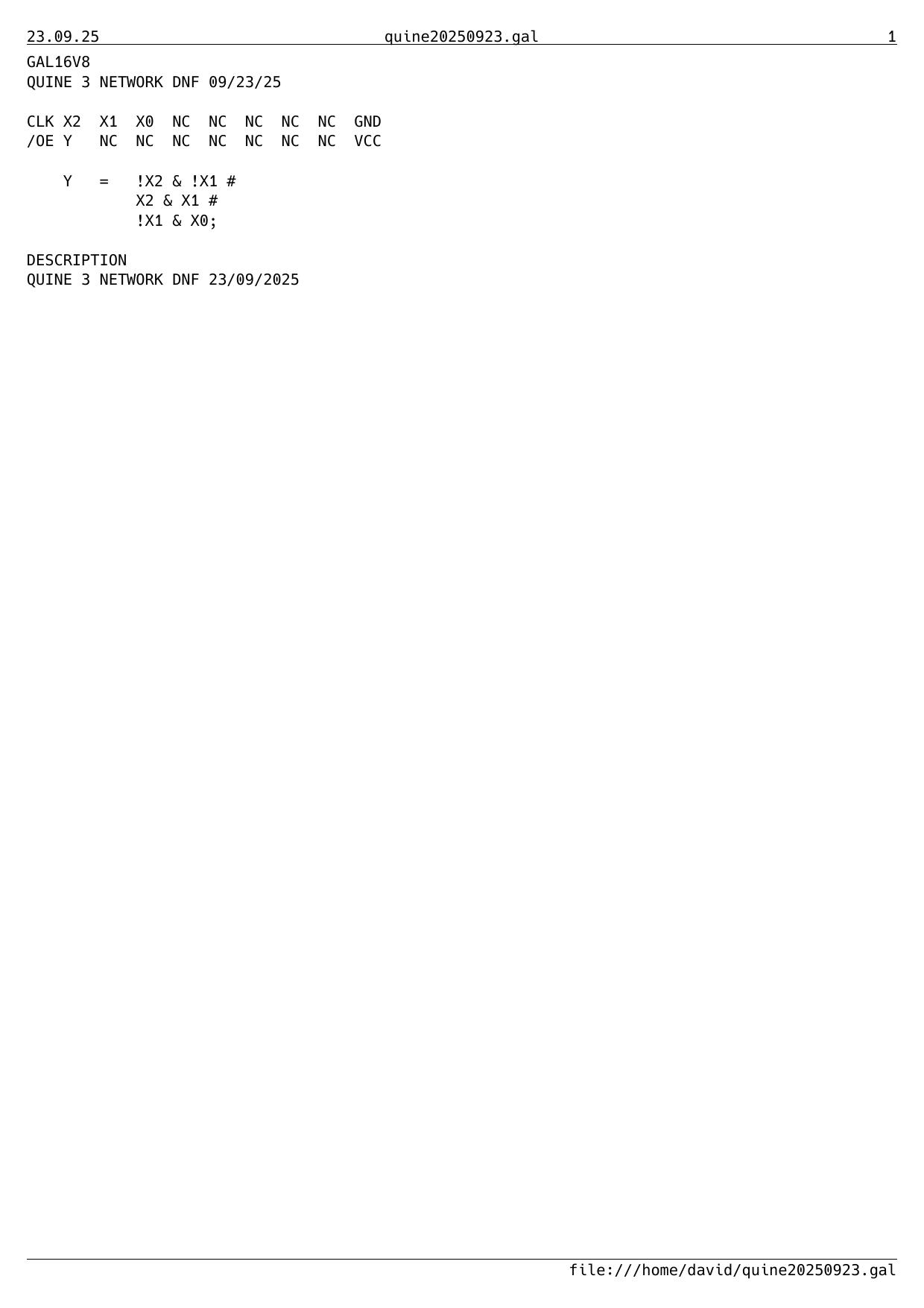

GAL16V8
QUINE 3 NETWORK DNF 09/23/25

/OE X2  X1  X0  NC  NC  NC  NC  NC  GND
CLK Y   NC  NC  NC  NC  NC  NC  NC  VCC

    Y   =   !X2 * !X1 + X2 * X1 + !X1 * X0;

DESCRIPTION
QUINE 3 NETWORK DNF 23/09/2025

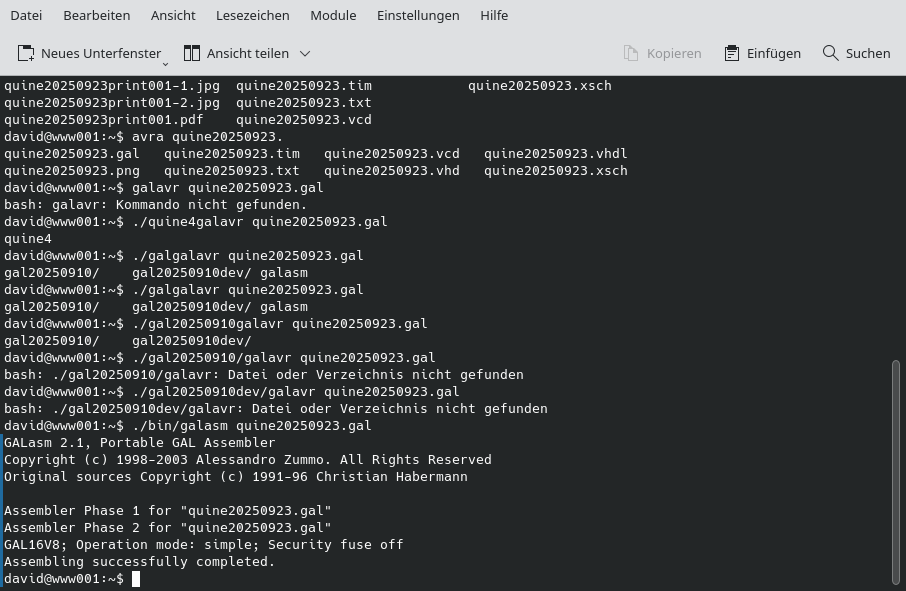

Used Program:   GALasm 2.1
GAL-Assembler:  GALasm 2.1
Device:         GAL16V8

*F0
*G0
*QF2194
*L1792 10111011111111111111111111111111
*L1824 01110111111111111111111111111111
*L1856 11111011011111111111111111111111
*L2048 00000001
*L2056 0101000101010101010010010100111001000101001000000011001100100000
*L2120 00000000
*L2128 1111111111111111111111111111111111111111111111111111111111111111
*L2192 1
*L2193 0
*C17c7
*
5502


 Pin # | Name     | Pin Type
-----------------------------
   1   | /OE      | Input
   2   | X2       | Input
   3   | X1       | Input
   4   | X0       | Input
   5   | NC       | Input
   6   | NC       | Input
   7   | NC       | Input
   8   | NC       | Input
   9   | NC       | Input
  10   | GND      | GND
  11   | CLK      | Input
  12   | Y        | Output
  13   | NC       | NC
  14   | NC       | NC
  15   | NC       | NC
  16   | NC       | NC
  17   | NC       | NC
  18   | NC       | NC
  19   | NC       | NC
  20   | VCC      | VCC
Image quine20250923print001-1 Image quine20250923print001-2 Image quine20250923print002-1
Timing Analyzer Settings
     Time_Scale:        1.000000E-15
     Time_Per_Division: 8.000000E+06
     NumberDivisions:   10
     Start_Time:        0.0
     End_Time:          80000000.0
Digital_Signal
     Position:          1
     Height:            24
     Space_Above:       24
     Name:              x0
     Start_State:       0
     Number_Edges:      8
     Rise_Time:         0.2
     Fall_Time:         0.2
          Edge:               10000000.0 1
          Edge:               20000000.0 0
          Edge:               30000000.0 1
          Edge:               40000000.0 0
          Edge:               50000000.0 1
          Edge:               60000000.0 0
          Edge:               70000000.0 1
          Edge:               80000000.0 0
Digital_Signal
     Position:          2
     Height:            24
     Space_Above:       24
     Name:              x1
     Start_State:       0
     Number_Edges:      4
     Rise_Time:         0.2
     Fall_Time:         0.2
          Edge:               20000000.0 1
          Edge:               40000000.0 0
          Edge:               60000000.0 1
          Edge:               80000000.0 0
Digital_Signal
     Position:          3
     Height:            24
     Space_Above:       24
     Name:              x2
     Start_State:       0
     Number_Edges:      2
     Rise_Time:         0.2
     Fall_Time:         0.2
          Edge:               40000000.0 1
          Edge:               80000000.0 0
Digital_Signal
     Position:          4
     Height:            24
     Space_Above:       24
     Name:              y
     Start_State:       1
     Number_Edges:      2
     Rise_Time:         0.2
     Fall_Time:         0.2
          Edge:               20000000.0 0
          Edge:               50000000.0 1
(C) David Vajda
Tue Sep 23 11:22:50 2025

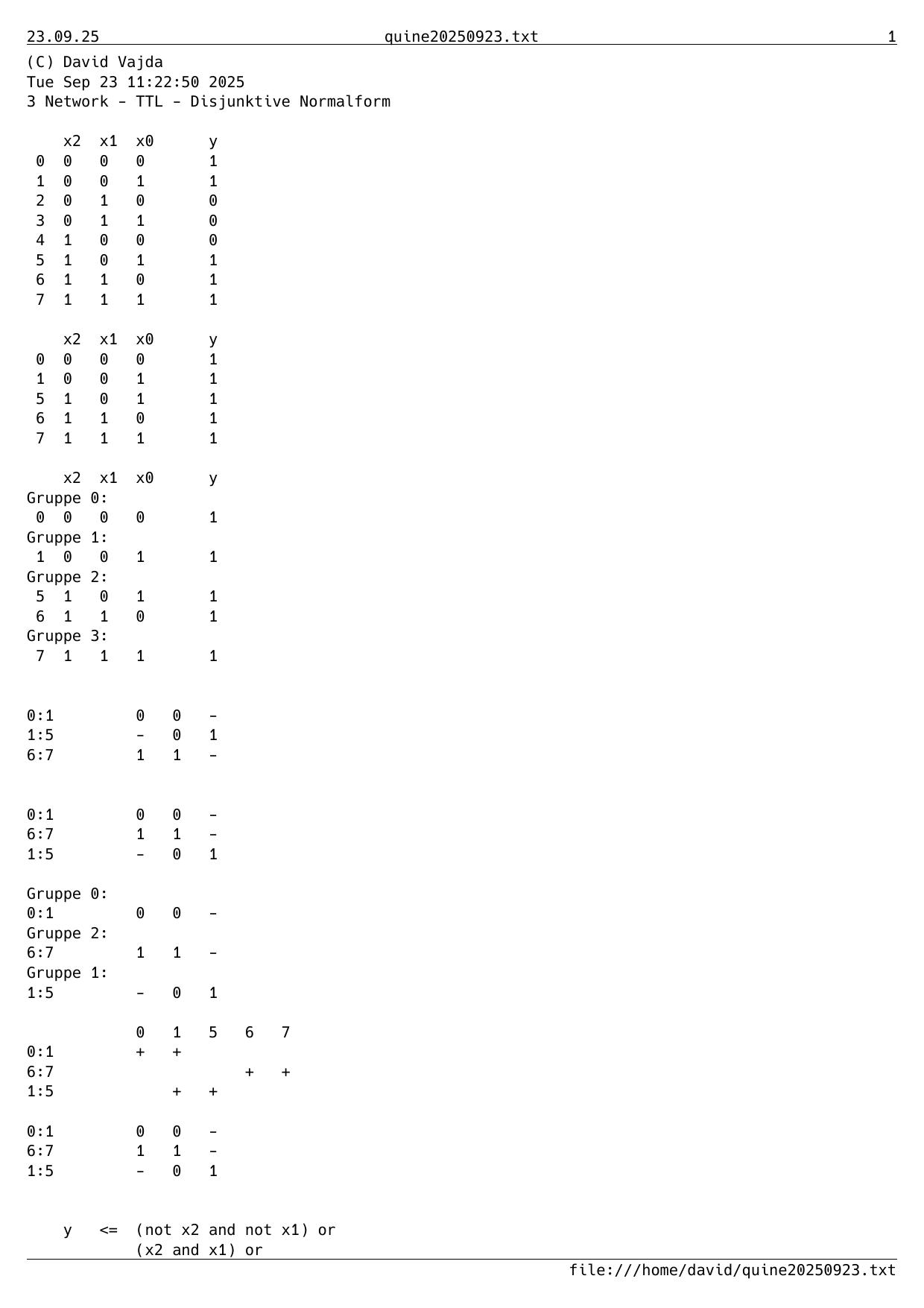

3 Network - TTL - Disjunktive Normalform

	x2	x1	x0		y
 0	0	0	0		1
 1	0	0	1		1
 2	0	1	0		0
 3	0	1	1		0
 4	1	0	0		0
 5	1	0	1		1
 6	1	1	0		1
 7	1	1	1		1

	x2	x1	x0		y
 0	0	0	0		1
 1	0	0	1		1
 5	1	0	1		1
 6	1	1	0		1
 7	1	1	1		1

 	x2	x1	x0		y
Gruppe 0:
 0	0	0	0		1
Gruppe 1:
 1	0	0	1		1
Gruppe 2:
 5	1	0	1		1
 6	1	1	0		1
Gruppe 3:
 7	1	1	1		1


0:1			0	0	-
1:5			-	0	1
6:7			1	1	-


0:1			0	0	-
6:7			1	1	-
1:5			-	0	1

Gruppe 0:
0:1			0	0	-
Gruppe 2:
6:7			1	1	-
Gruppe 1:
1:5			-	0	1

			0	1	5	6	7
0:1			+	+
6:7						+	+
1:5				+	+

0:1			0	0	-
6:7			1	1	-
1:5			-	0	1


	y	<=	(not x2 and not x1) or
			(x2 and x1) or
			(not x1 and x0);

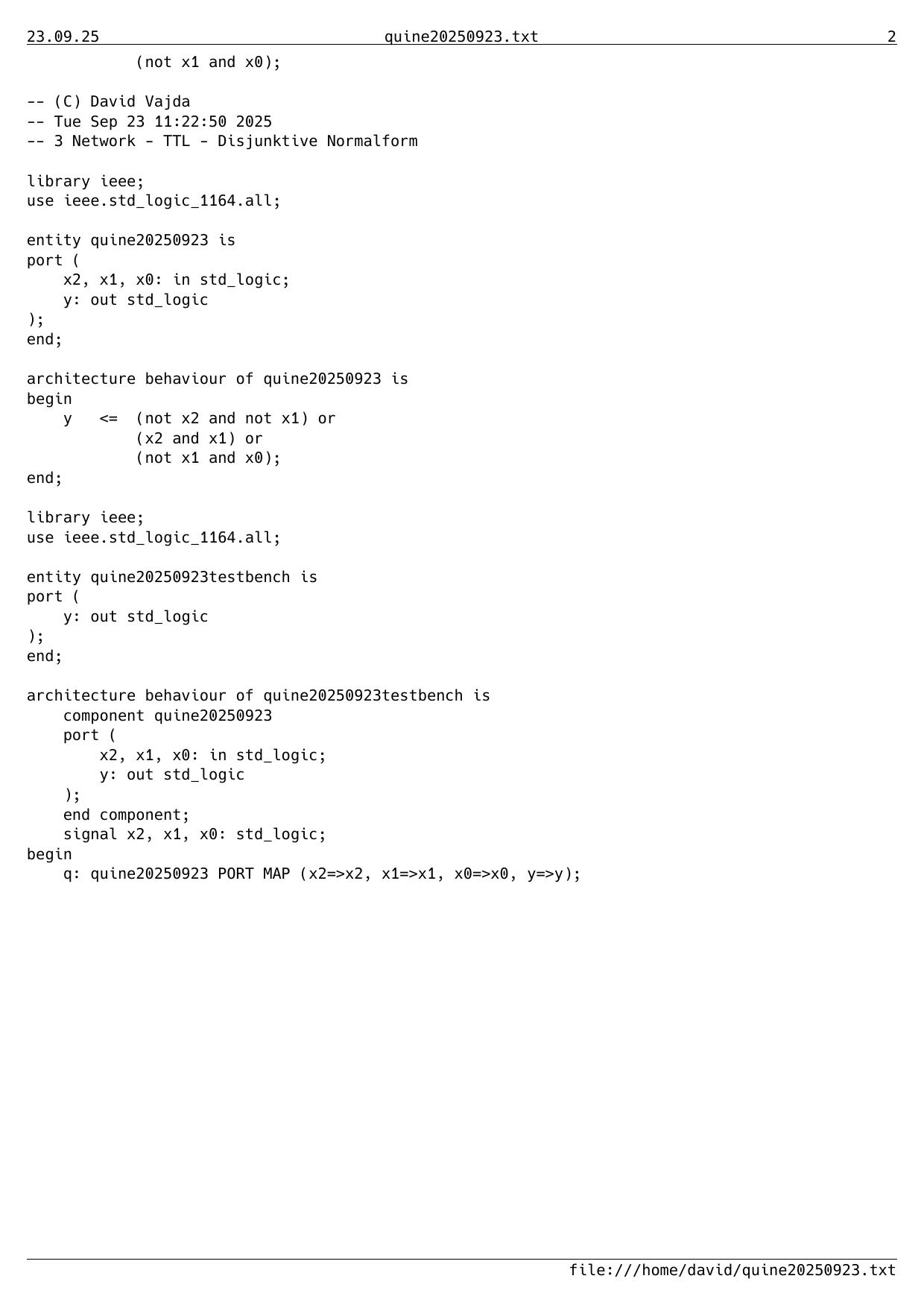

-- (C) David Vajda
-- Tue Sep 23 11:22:50 2025
-- 3 Network - TTL - Disjunktive Normalform

library ieee;
use ieee.std_logic_1164.all;

entity quine20250923 is
port (
	x2, x1, x0: in std_logic;
	y: out std_logic
);
end;

architecture behaviour of quine20250923 is
begin
	y	<=	(not x2 and not x1) or
			(x2 and x1) or
			(not x1 and x0);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine20250923testbench is
port (
	y: out std_logic
);
end;

architecture behaviour of quine20250923testbench is
	component quine20250923
	port (
		x2, x1, x0: in std_logic;
		y: out std_logic
	);
	end component;
	signal x2, x1, x0: std_logic;
begin
	q: quine20250923 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);

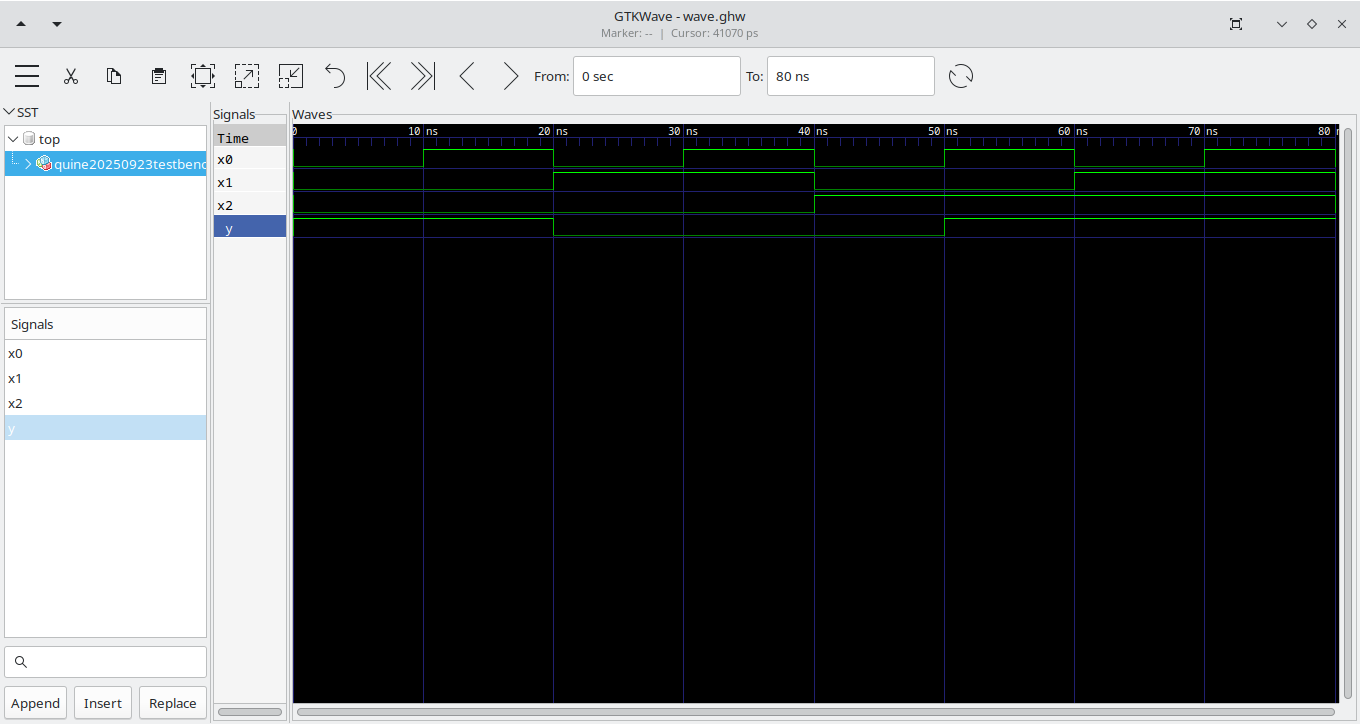

$date
	Tue Sep 23 11:41:49 2025
$end
$version
	GTKWave Analyzer v3.3.118 (w)1999-2023 BSI
$end
$timescale
	1fs
$end
$scope module top $end
$scope module quine20250923testbench $end
$var  1 % y $end
$var  1 $ x2 $end
$var  1 # x1 $end
$var  1 " x0 $end
$upscope $end
$upscope $end
$enddefinitions $end
#0
$dumpvars
0"
0$
0#
1%
$end
#10000000
1"
#20000000
0"
0%
1#
#30000000
1"
#40000000
0"
0#
1$
#50000000
1"
1%
#60000000
1#
0"
#70000000
1"
#80000000
0"
0$
0#
-- (C) David Vajda
-- Tue Sep 23 11:22:50 2025
-- 3 Network - TTL - Disjunktive Normalform

library ieee;
use ieee.std_logic_1164.all;

entity quine20250923 is
port (
	x2, x1, x0: in std_logic;
	y: out std_logic
);
end;

architecture behaviour of quine20250923 is
begin
	y	<=	(not x2 and not x1) or
			(x2 and x1) or
			(not x1 and x0);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine20250923testbench is
port (
	y: out std_logic
);
end;

architecture behaviour of quine20250923testbench is
	component quine20250923
	port (
		x2, x1, x0: in std_logic;
		y: out std_logic
	);
	end component;
	signal x2, x1, x0: std_logic;
begin
	q: quine20250923 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);
-- (C) David Vajda
-- Tue Sep 23 11:22:50 2025
-- 3 Network - TTL - Disjunktive Normalform

library ieee;
use ieee.std_logic_1164.all;

entity quine20250923 is
port (
	x2, x1, x0: in std_logic;
	y: out std_logic
);
end;

architecture behaviour of quine20250923 is
begin
	y	<=	(not x2 and not x1) or
			(x2 and x1) or
			(not x1 and x0);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine20250923testbench is
port (
	y: out std_logic
);
end;

architecture behaviour of quine20250923testbench is
	component quine20250923
	port (
		x2, x1, x0: in std_logic;
		y: out std_logic
	);
	end component;
	signal x2, x1, x0: std_logic;
begin
	q: quine20250923 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);
	x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;
end;
Image Screenshot_20250923_114618 Image Screenshot_20250923_123331 Image Screenshot_20250923_134151 Image Screenshot_20250923_134213 Image Screenshot_20250923_134220 Image Screenshot_20250923_134610 Image Screenshot_20250923_135430 Image Screenshot_20250923_144016 Image Screenshot_20250923_145428 Image Screenshot_20250923_150630 Image Screenshot_20250923_190534
