-- (C) David Vajda
-- Mon Mar 24 13:53:14 2025

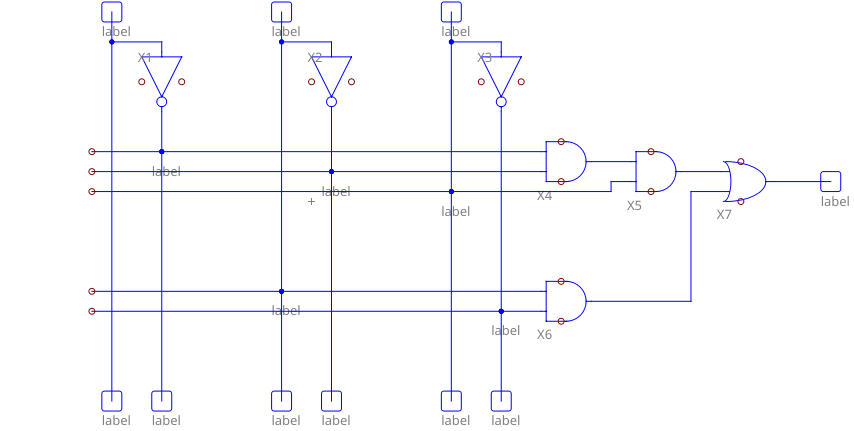

-- 3 Network - TTL - Disjunktive Normalform


library ieee;
use ieee.std_logic_1164.all;

entity quine20250324 is
port (
	x2, x1, x0: in std_logic;
	y: out std_logic
);
end;

architecture behaviour of quine20250324 is
begin
	y	<=	(not x2 and not x1 and x0) or
			(x1 and not x0);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine20250324testbench is
port (
	y: out std_logic
);
end;

architecture behaviour of quine20250324testbench is
	component quine20250324
	port (
		x2, x1, x0: in std_logic;
		y: out std_logic
	);
	end component;
	signal x2, x1, x0: std_logic;
begin
	q: quine20250324 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);
	x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;
end;
