0 0 0 0 0 0 1 0 0 0 1 0 2 0 0 1 0 1 3 0 0 1 1 1 4 0 1 0 0 0 5 0 1 0 1 1 6 0 1 1 0 0 7 0 1 1 1 0 8 1 0 0 0 1 9 1 0 0 1 0 10 1 0 1 0 0 11 1 0 1 1 1 12 1 1 0 0 1 13 1 1 0 1 0 14 1 1 1 0 0 15 1 1 1 1 1 2 0 0 1 0 1 3 0 0 1 1 1 5 0 1 0 1 1 8 1 0 0 0 1 11 1 0 1 1 1 12 1 1 0 0 1 15 1 1 1 1 1 Gruppe 1: 2 0 0 1 0 1 8 1 0 0 0 1 Gruppe 2: 3 0 0 1 1 1 5 0 1 0 1 1 12 1 1 0 0 1 Gruppe 3: 11 1 0 1 1 1 Gruppe 4; 15 1 1 1 1 1 2:3 0 0 1 - 8:12 1 - 0 0 3:11 - 0 1 1 5 0 1 0 1 11:15 1 - 1 1 2:3 0 0 1 - 8:12 1 - 0 0 11:15 1 - 1 1 3:11 - 0 1 1 5 0 1 0 1 Minimale Restueberdeckung 2 3 5 8 11 12 15 2:3 * * p 8:12 * * p 11:15 * * p 3:11 * * 5 * p 2 3 5 8 11 12 15 2:3 * * p 8:12 * * p 11:15 * * p 5 * p 2:3 0 0 1 - 8:12 1 - 0 0 11:15 1 - 1 1 5 0 1 0 1 y <= (not x3 and not x2 and x1) or (x3 and not x1 and not x0) or (x3 and x1 and x0) or (not x3 and x2 and not x1 and x0); Disjunktive y <= not (x3 or x2 or not x1) and (not x3 or x1 or x0) and (not x3 or not x1 or not x0) and (x3 or not x2 or x1 or not x0); library ieee; use ieee.std_logic_1164.all; entity quine20241008 is port ( x3, x2, x1, x0: in std_logic; y: out std_logic ); end; architecture behaviour of quine20241008 is begin y <= (not x3 and not x2 and x1) or (x3 and not x1 and not x0) or (x3 and x1 and x0) or (not x3 and x2 and not x1 and x0); end; library ieee; use ieee.std_logic_1164.all; entity quine20241008testbench is port ( y: inout std_logic ); end; architecture behaviour of quine20241008testbench is component quine20241008 is port ( x3, x2, x1, x0: in std_logic; y: out std_logic ); end component; signal x3, x2, x1, x0: std_logic; begin q: quine20241008 PORT MAP (x3=>x3, x2=>x2, x1=>x1, x0=>x0, y=>y); x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns, '1' after 90 ns, '0' after 100 ns, '1' after 110 ns, '0' after 120 ns, '1' after 130 ns, '0' after 140 ns, '1' after 150 ns; x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '1' after 100 ns, '1' after 110 ns, '0' after 120 ns, '0' after 130 ns, '1' after 140 ns, '1' after 150 ns; x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '0' after 100 ns, '0' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns; x3 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '0' after 40 ns, '0' after 50 ns, '0' after 60 ns, '0' after 70 ns, '1' after 80 ns, '1' after 90 ns, '1' after 100 ns, '1' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns; end;VHDL Code

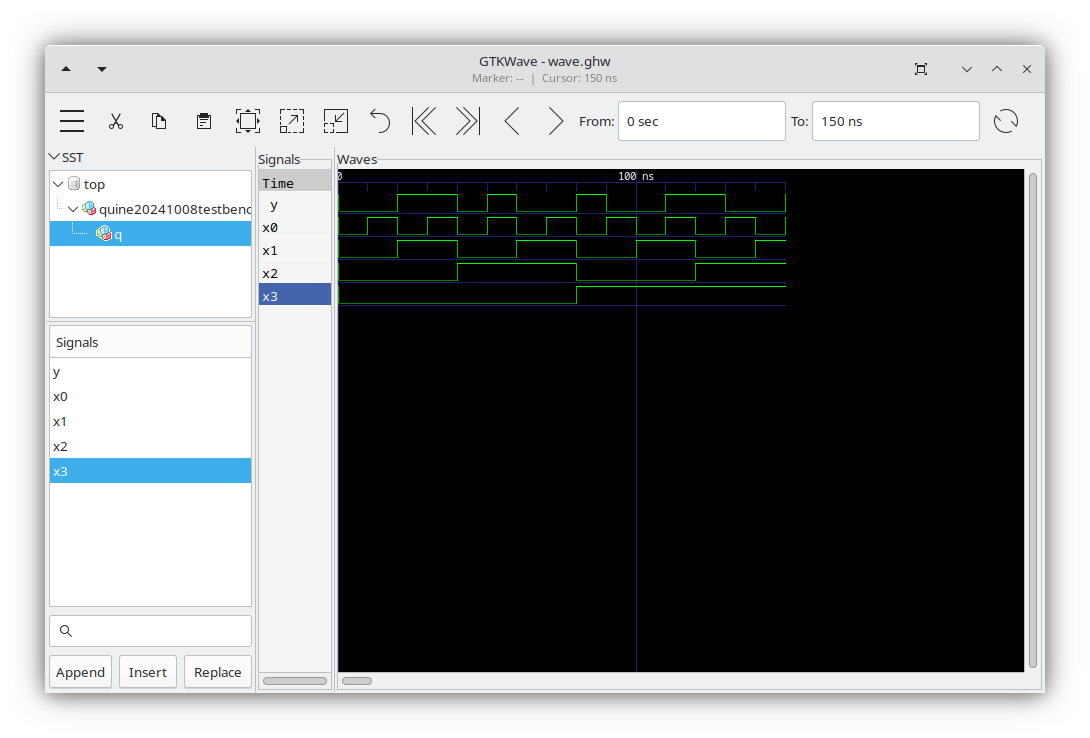

library ieee; use ieee.std_logic_1164.all; entity quine20241008 is port ( x3, x2, x1, x0: in std_logic; y: out std_logic ); end; architecture behaviour of quine20241008 is begin y <= (not x3 and not x2 and x1) or (x3 and not x1 and not x0) or (x3 and x1 and x0) or (not x3 and x2 and not x1 and x0); end; library ieee; use ieee.std_logic_1164.all; entity quine20241008testbench is port ( y: inout std_logic ); end; architecture behaviour of quine20241008testbench is component quine20241008 is port ( x3, x2, x1, x0: in std_logic; y: out std_logic ); end component; signal x3, x2, x1, x0: std_logic; begin q: quine20241008 PORT MAP (x3=>x3, x2=>x2, x1=>x1, x0=>x0, y=>y); x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns, '1' after 90 ns, '0' after 100 ns, '1' after 110 ns, '0' after 120 ns, '1' after 130 ns, '0' after 140 ns, '1' after 150 ns; x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '1' after 100 ns, '1' after 110 ns, '0' after 120 ns, '0' after 130 ns, '1' after 140 ns, '1' after 150 ns; x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns, '0' after 90 ns, '0' after 100 ns, '0' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns; x3 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '0' after 40 ns, '0' after 50 ns, '0' after 60 ns, '0' after 70 ns, '1' after 80 ns, '1' after 90 ns, '1' after 100 ns, '1' after 110 ns, '1' after 120 ns, '1' after 130 ns, '1' after 140 ns, '1' after 150 ns; end;
