TTL-Gatter und Disjunktive Normalform

(C) David Vajda
2024-11-28
Disjunktive Normalform 74xx TTL

x2	x1	x0	y
0	0	0	1
0	0	1	0
0	1	0	0
0	1	1	0
1	0	0	0
1	0	1	1
1	1	0	0
1	1	1	1

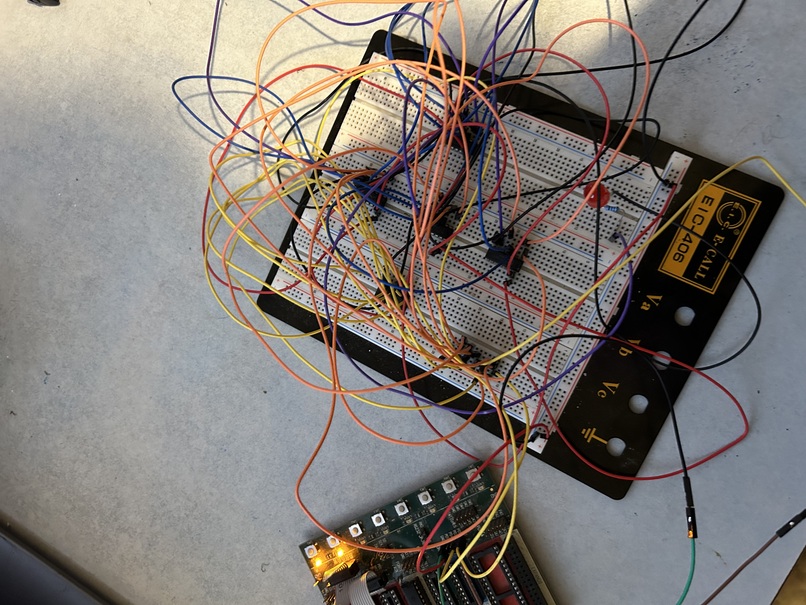

Image IMG_5200

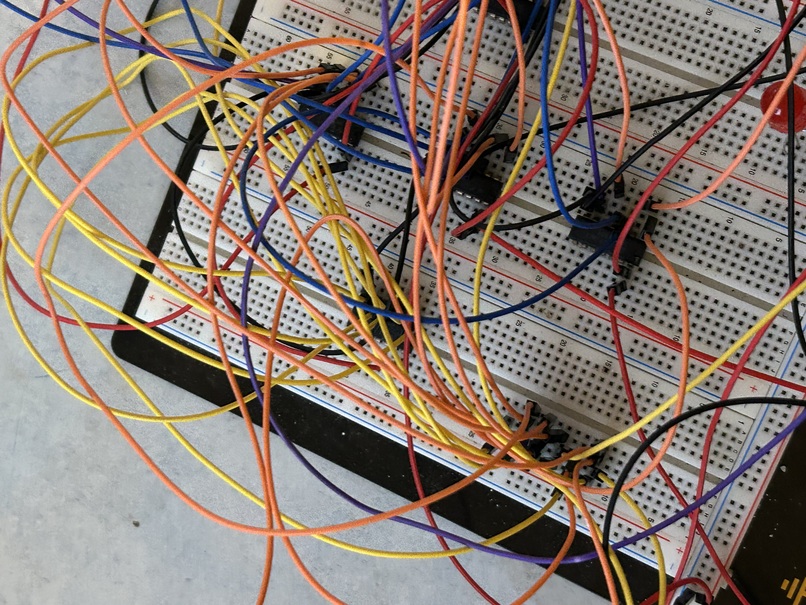

Image IMG_5201

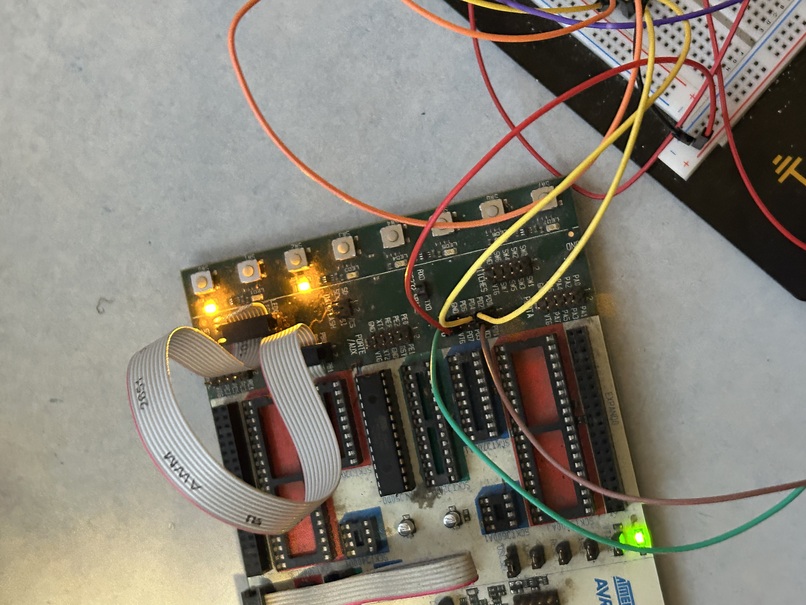

Image IMG_5202
