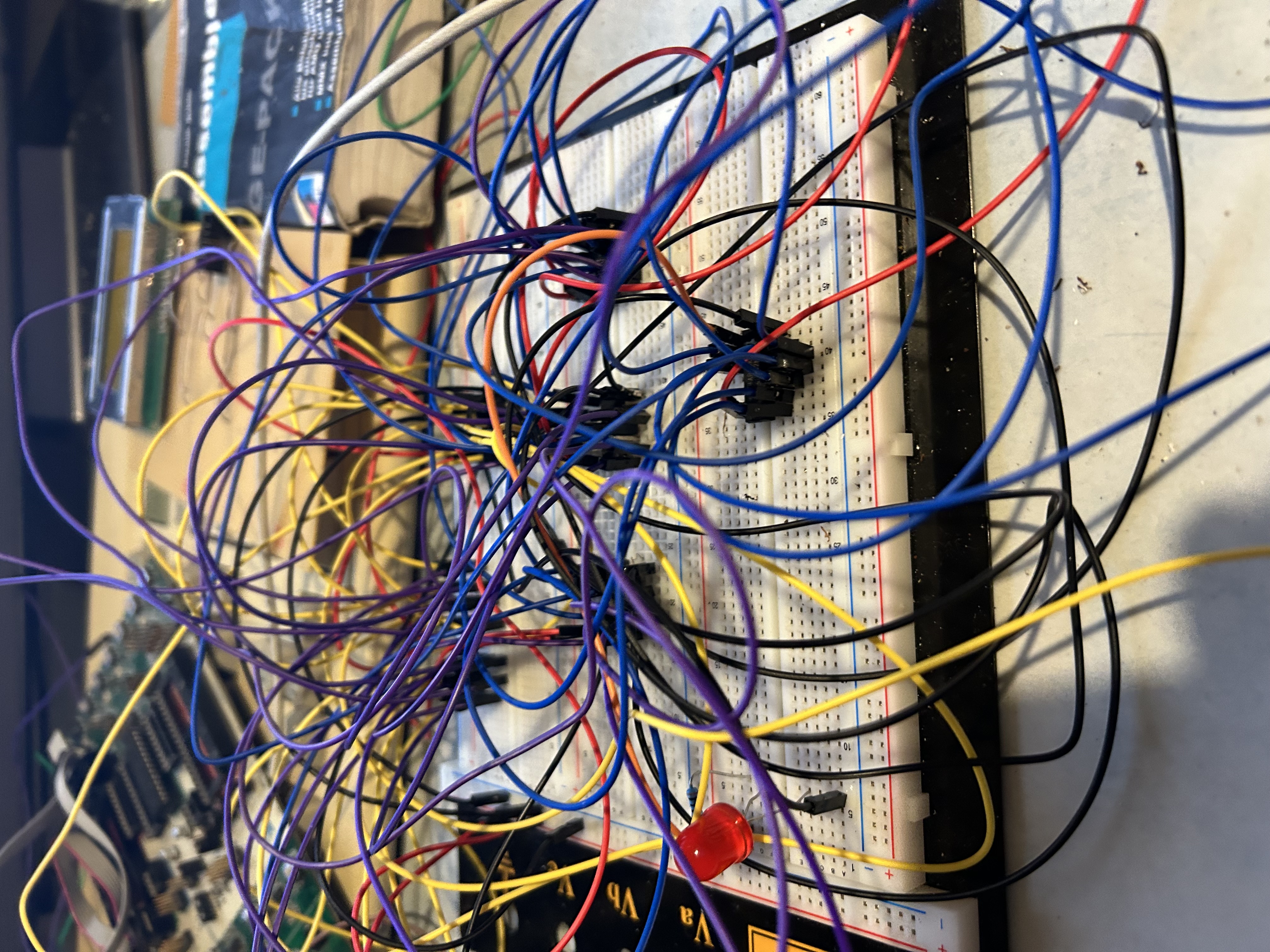

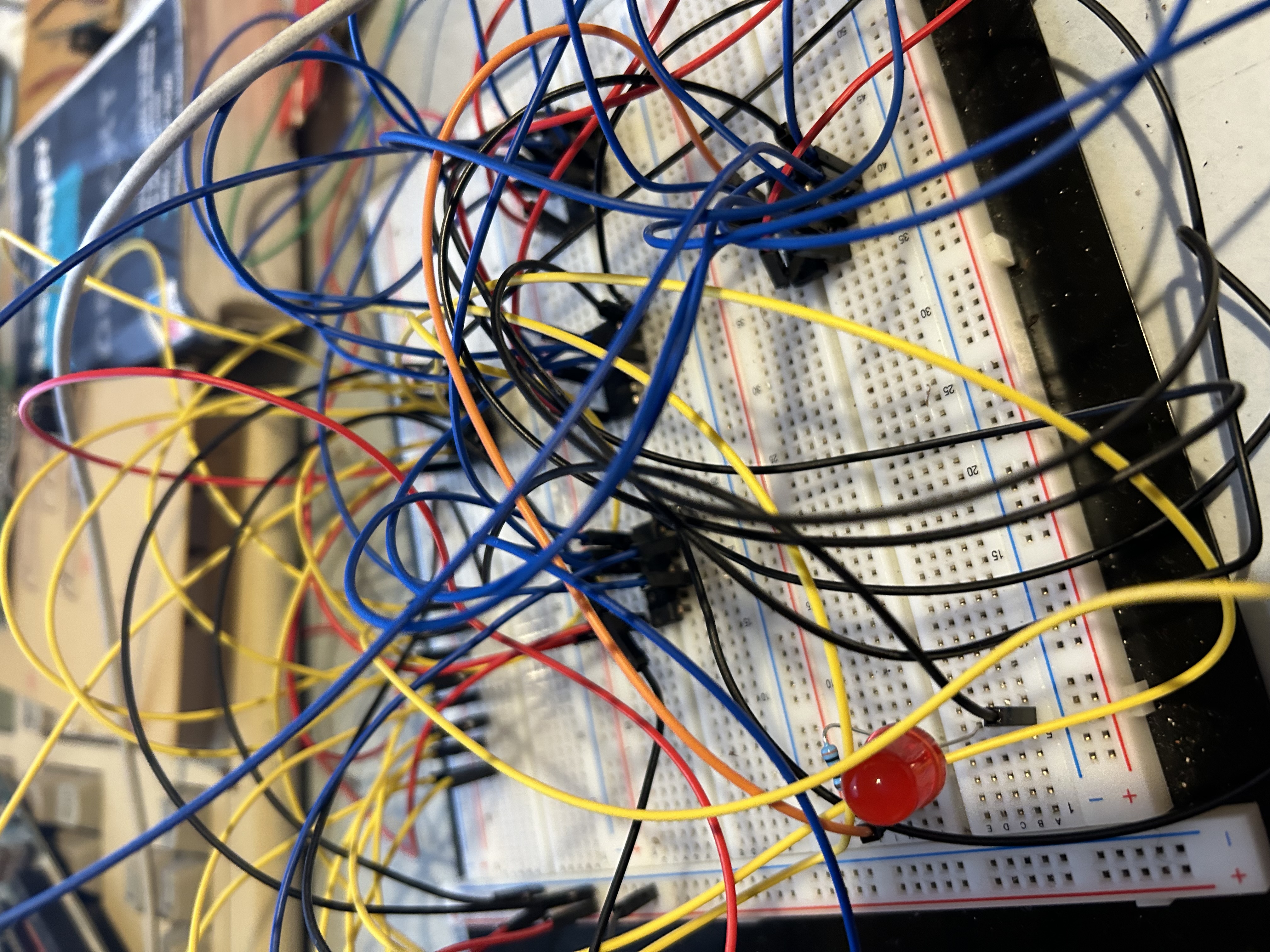

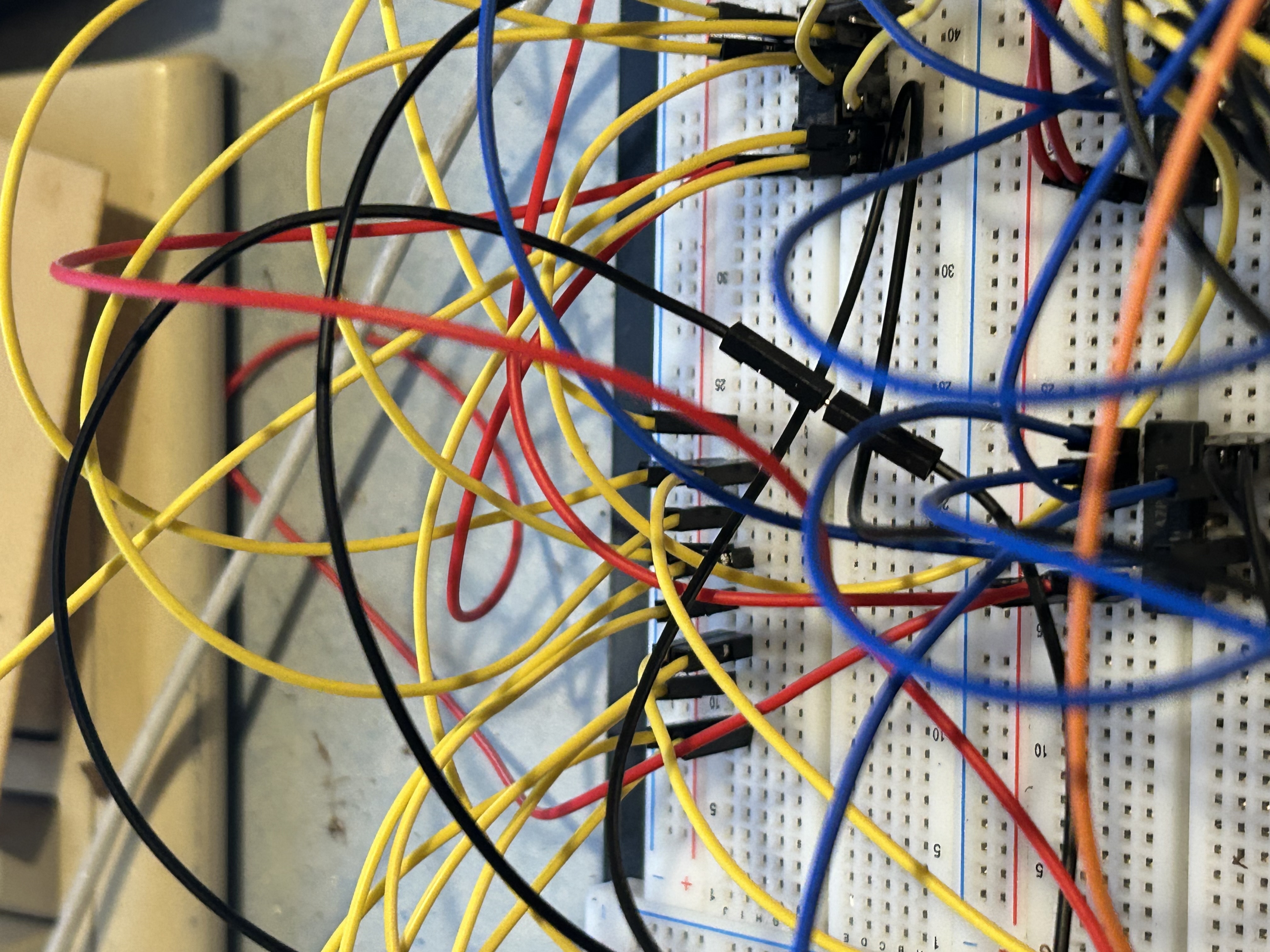

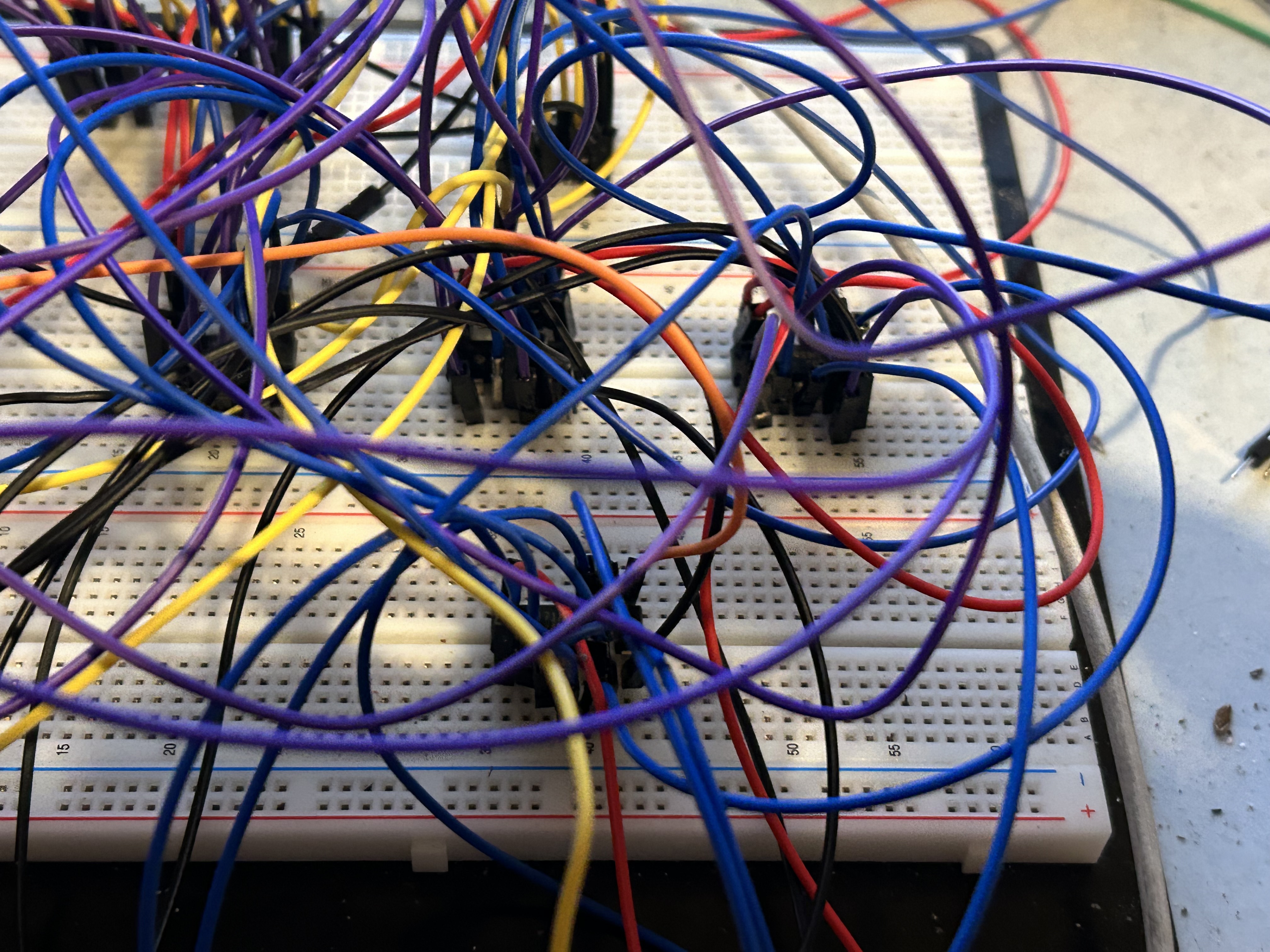

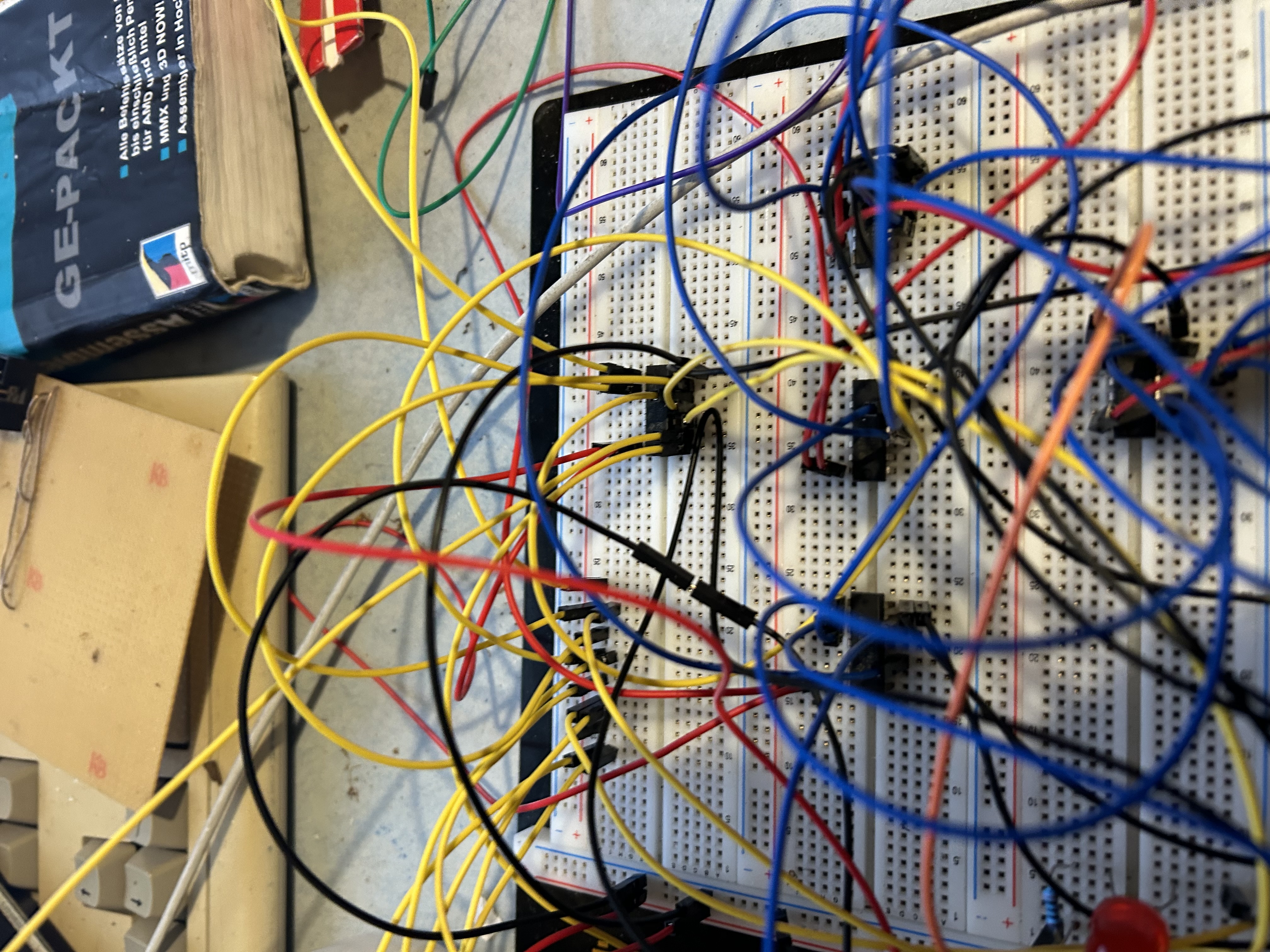

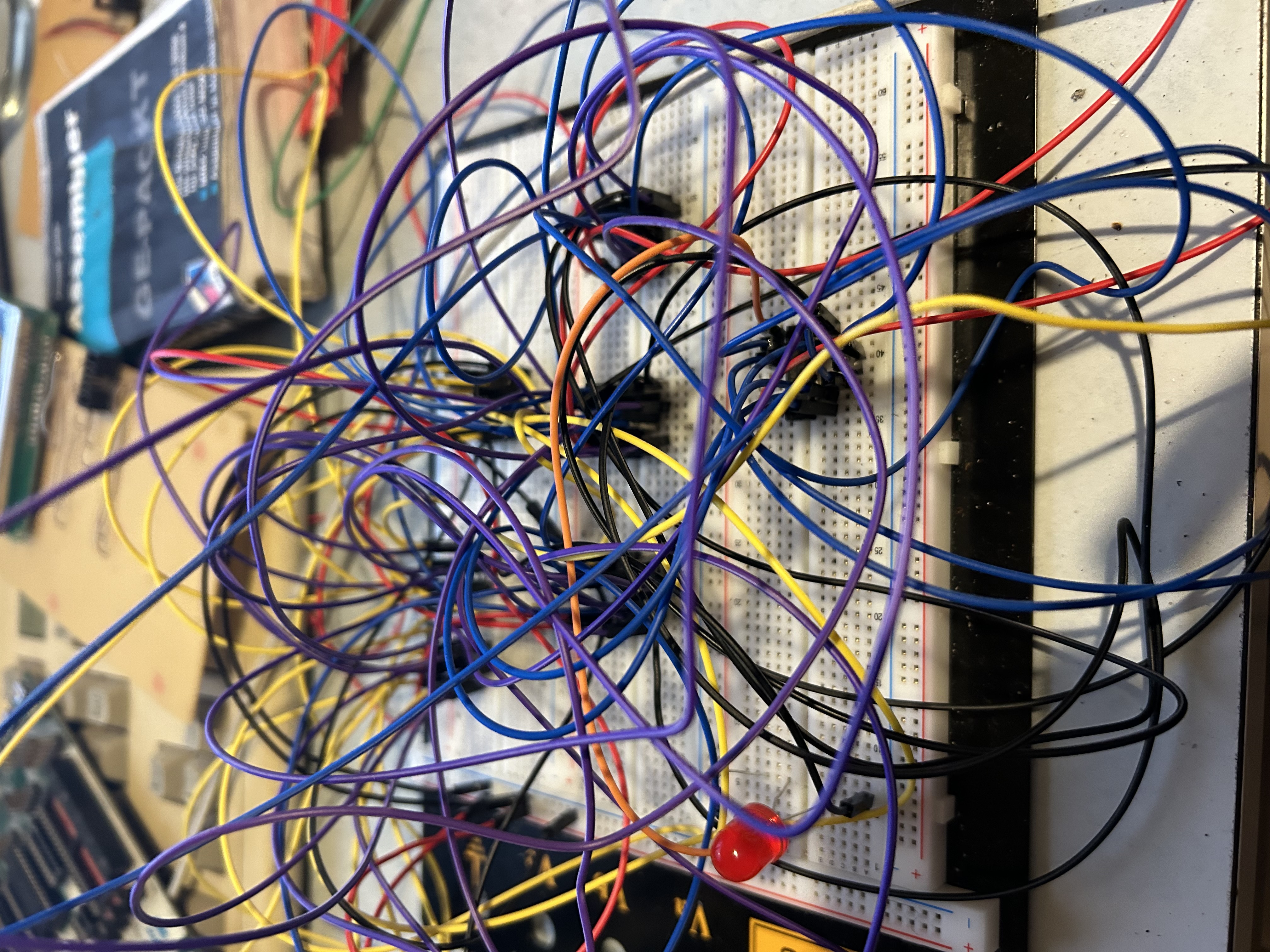

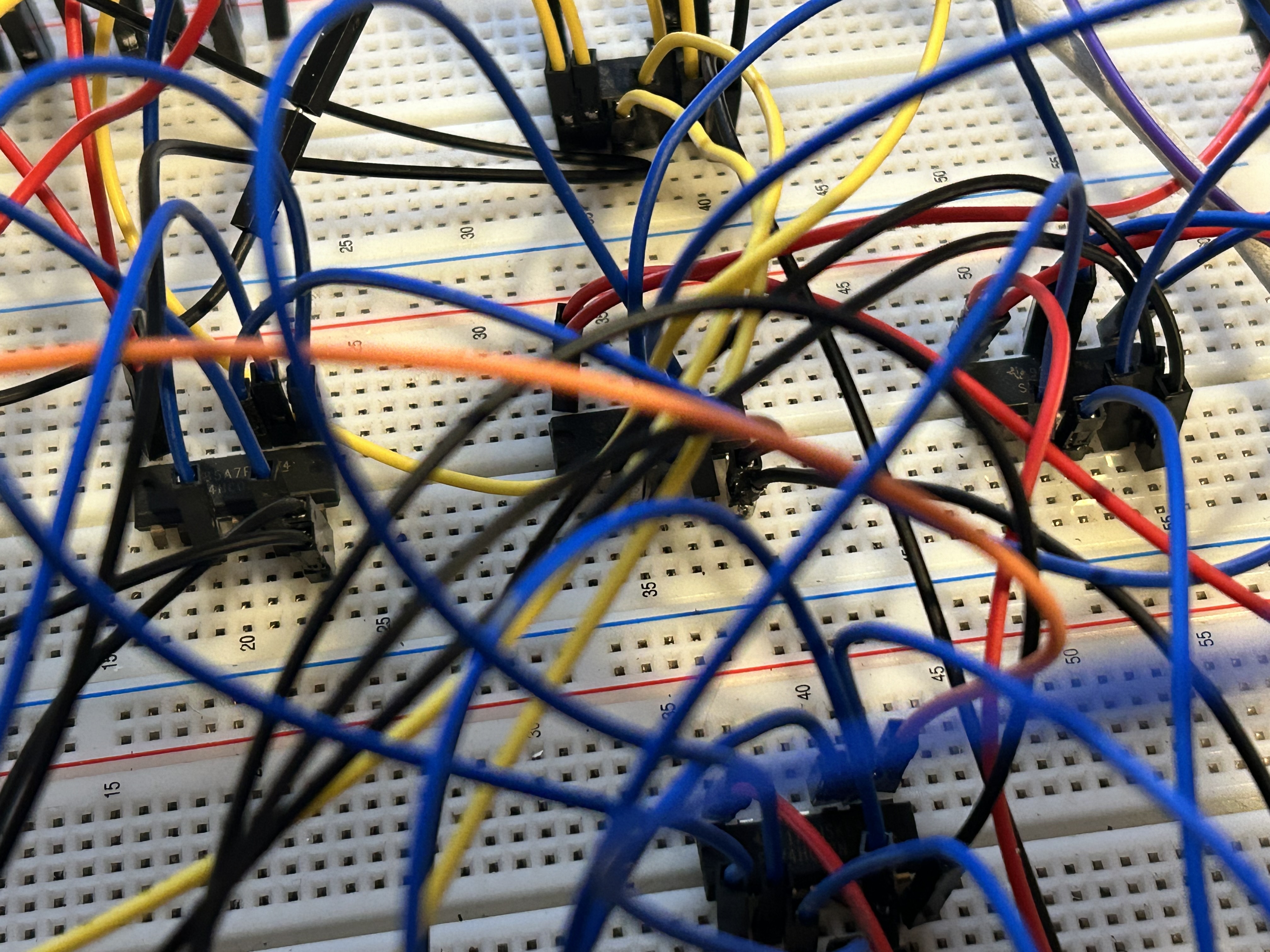

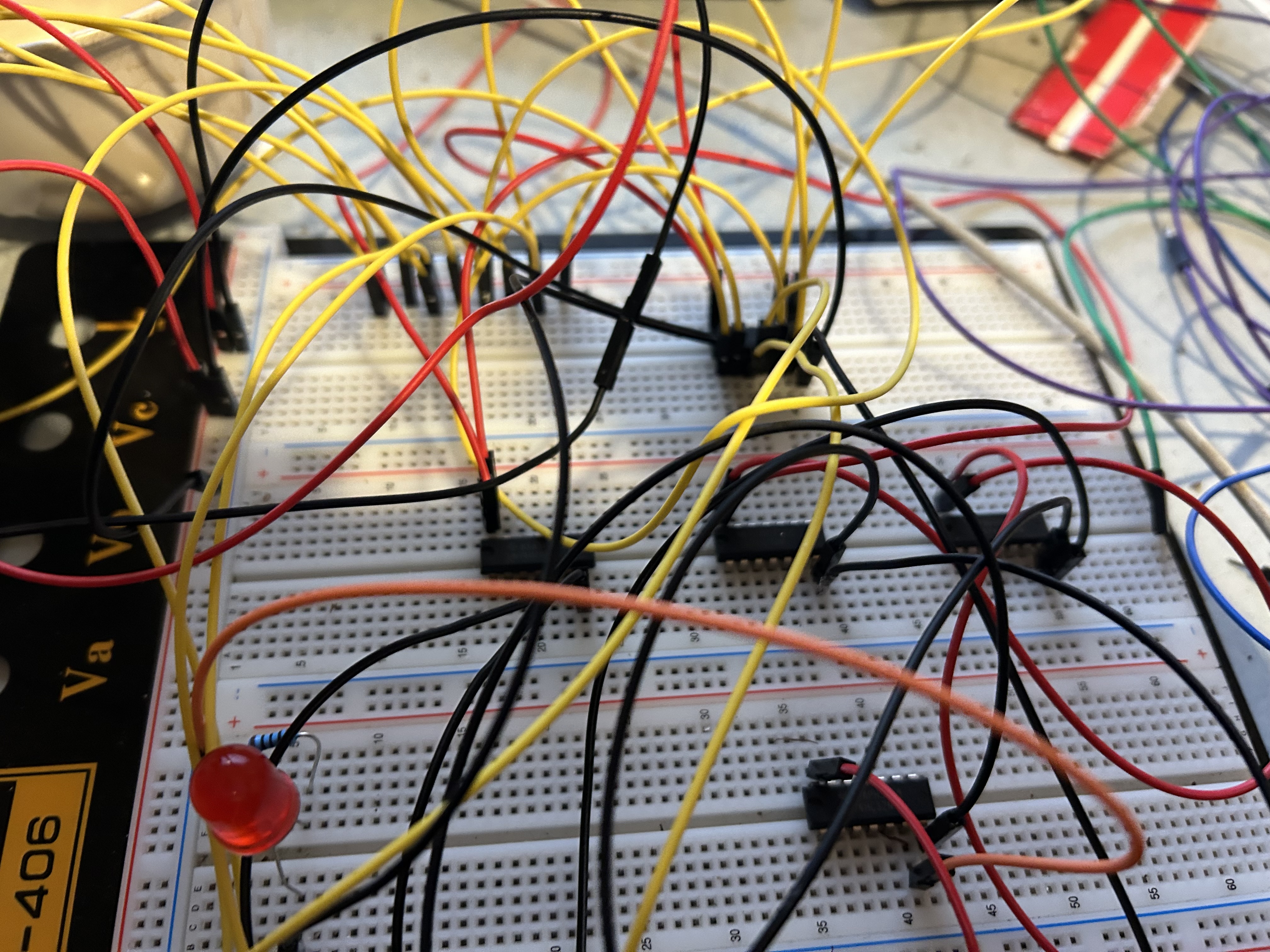

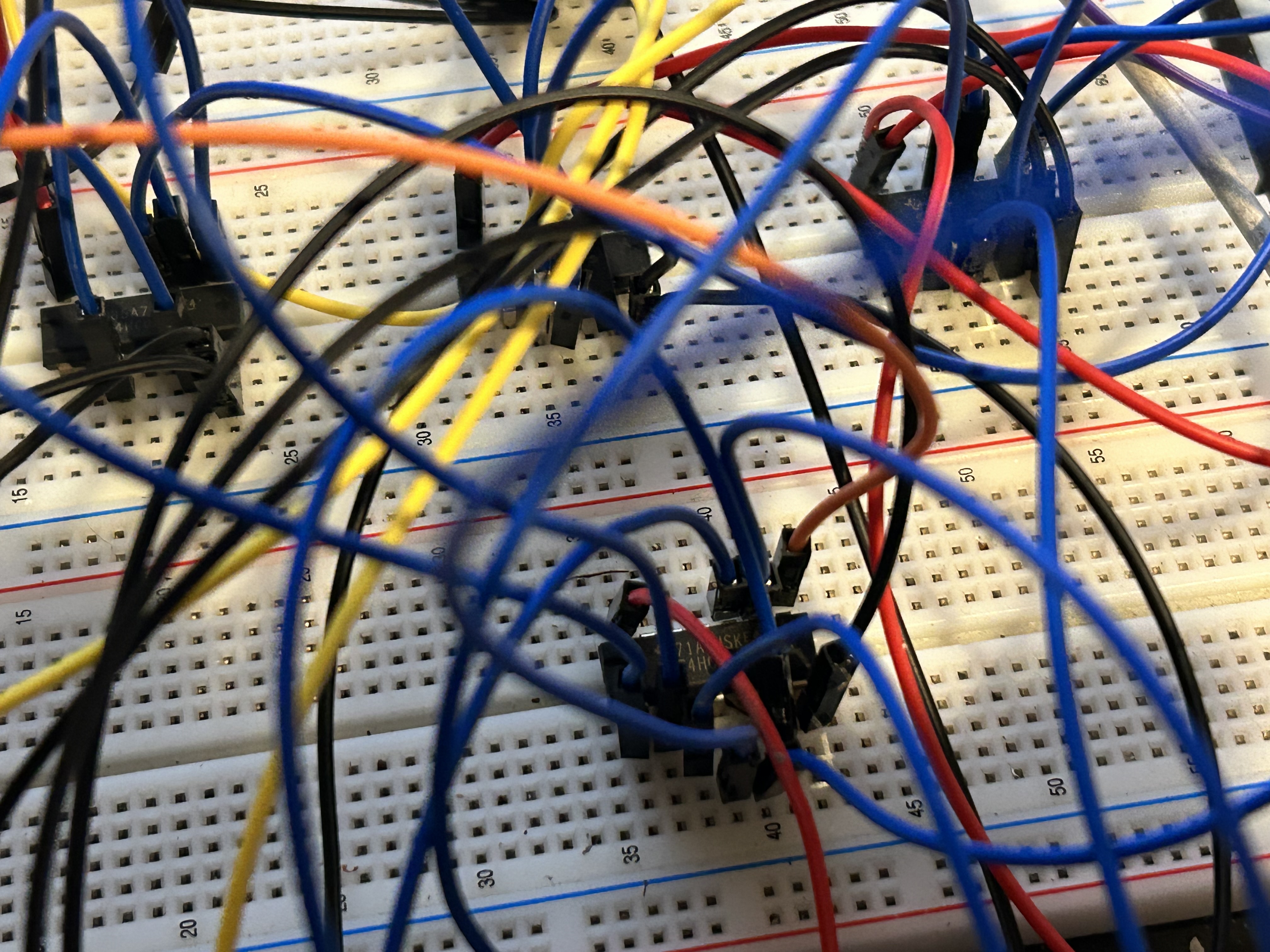

TTL - 74xx - Quine Mc Cluskey und zwei Zeilen, 2024-10-31

Drei Zeilen:

x2	x1	x0	y
0	0	0	0
0	0	1	1
0	1	0	0
0	1	1	1
1	0	0	0
1	0	1	0
1	1	0	0
1	1	1	1

Quine Mc Cluskey:

 0 0 0 0 0    0
 1 0 0 0 1    0
 2 0 0 1 0    0
 3 0 0 1 1    0
 4 0 1 0 0    1
 5 0 1 0 1    0
 6 0 1 1 0    0
 7 0 1 1 1    1
 8 1 0 0 0    1
 9 1 0 0 1    1
10 1 0 1 0    0
11 1 0 1 1    0
12 1 1 0 0    0
13 1 1 0 1    1
14 1 1 1 0    0
15 1 1 1 1    0

Verkürzt:

    y   <=  (not x3 and x2 and not x1 and not x0) or
            (x3 and not x2 and not x1) or
            (x3 and not x1 and x0) or
            (not x3 and x2 and x1 and x0);

Die andere Aufgabe

 0 0 0 0 0    0
 1 0 0 0 1    0
 2 0 0 1 0    1
 3 0 0 1 1    1
 4 0 1 0 0    0
 5 0 1 0 1    0
 6 0 1 1 0    1
 7 0 1 1 1    0
 8 1 0 0 0    0
 9 1 0 0 1    1
10 1 0 1 0    1
11 1 0 1 1    0
12 1 1 0 0    0
13 1 1 0 1    1
14 1 1 1 0    1
15 1 1 1 1    0

Verkürzt

    y   <=  (not x3 and not x2 and x1) or
            (x3 and not x1 and x0) or
            (x1 and not x0);
