Re: Aufgaben und Übungen,

	b a x	b a y
0	0 0 0	1 1 0
1	0 0 1	1 0 1
2	0 1 0	0 0 0
3	0 1 1	1 1 0
4	1 0 0	0 1 0
5	1 0 1	0 0 0
6	1 1 0	1 0 0
7	1 1 1	1 1 0


	b a x	b
0	0 0 0	1
1	0 0 1	1
2	0 1 0	0
3	0 1 1	1
4	1 0 0	0
5	1 0 1	0
6	1 1 0	1
7	1 1 1	1

	b a x	a
0	0 0 0	1
1	0 0 1	0
2	0 1 0	0
3	0 1 1	1
4	1 0 0	1
5	1 0 1	0
6	1 1 0	0
7	1 1 1	1

	b a x	y
0	0 0 0	0
1	0 0 1	1
2	0 1 0	0
3	0 1 1	0
4	1 0 0	0
5	1 0 1	0
6	1 1 0	0
7	1 1 1	0



	b a x	b
0	0 0 0	1
1	0 0 1	1
3	0 1 1	1
6	1 1 0	1
7	1 1 1	1

	b a x	a
0	0 0 0	1
3	0 1 1	1
4	1 0 0	1
7	1 1 1	1

	b a x	y
1	0 0 1	1


	b a x	b
Gruppe 0:
0	0 0 0	1
Gruppe 1:
1	0 0 1	1
Gruppe 2:
3	0 1 1	1
6	1 1 0	1
Gruppe 3:
7	1 1 1	1

0:1		0 0 -
1:3		0 - 1
3:7		- 1 1
6:7		1 1 -

0:1		0 0 -
6:7		1 1 -
1:3		0 - 1
3:7		- 1 1

b <= (not b and not a) or (b and a) or (not b and x) (a and x)

	b a x	a
0	0 0 0	1
3	0 1 1	1
4	1 0 0	1
7	1 1 1	1

	b a x	a
Gruppe 0:
0	0 0 0	1
Gruppe 1:
4	1 0 0	1
Gruppe 2:
3	0 1 1	1
Gruppe 3:
7	1 1 1	1

0:4		- 0 0
3:7		- 1 1

a <= (not a and not x) or (a and x)


	b a x	y
1	0 0 1	1

y <= (not b and not a and x)


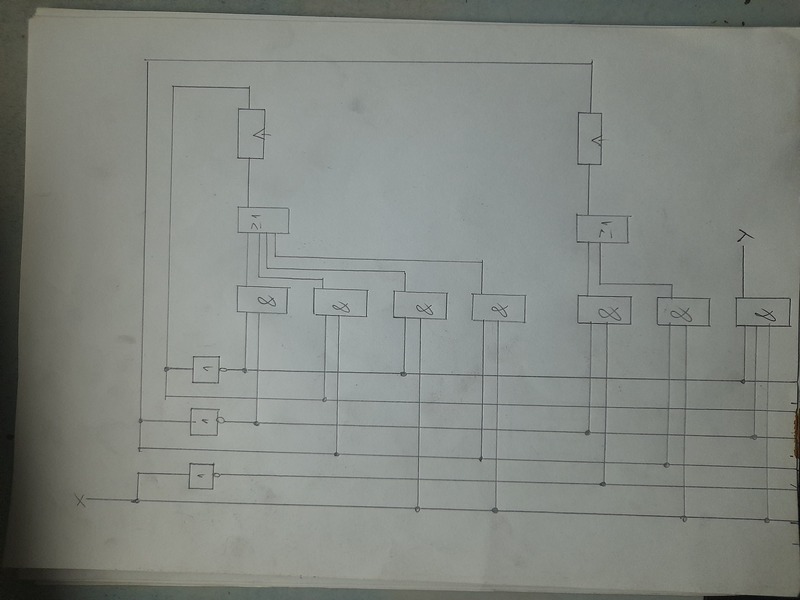

b <= (not b and not a) or (b and a) or (not b and x) (a and x)
a <= (not a and not x) or (a and x)
y <= (not b and not a and x)

entity meinuebergangsschaltnetz is
port
(
	b, a: inout bit;
	x: in bit
);
end;

entity meinausgangsschaltnetz is
port
( :
	b, a: in bit;
	y: out bit
);
end;

architecture verhalten of meinuebergangsschaltnetz is
begin
	b <= (not b and not a) or (b and a) or (not b and x) (a and x)
	a <= (not a and not x) or (a and x)
end;

architecture verhalten of meinausgangsschaltnetz is
begin
	y <= (not b and not a and x)
end;
