Re: Aufgaben und Übungen,

	b a x	b a y
0	0 0 0	1 1 0
1	0 0 1	0 1 0
2	0 1 0	1 1 0
3	0 1 1	0 0 0
4	1 0 0	1 0 1
5	1 0 1	0 0 1
6	1 1 0	1 1 1
7	1 1 1	0 0 1


	b a x	b
0	0 0 0	1
1	0 0 1	0
2	0 1 0	1
3	0 1 1	0
4	1 0 0	1
5	1 0 1	0
6	1 1 0	1
7	1 1 1	0

	b a x	a
0	0 0 0	1
1	0 0 1	1
2	0 1 0	1
3	0 1 1	0
4	1 0 0	0
5	1 0 1	0
6	1 1 0	1
7	1 1 1	0

	b a x	y
0	0 0 0	0
1	0 0 1	0
2	0 1 0	0
3	0 1 1	0
4	1 0 0	1
5	1 0 1	1
6	1 1 0	1
7	1 1 1	1


	b a x	b
0	0 0 0	1
2	0 1 0	1
4	1 0 0	1
6	1 1 0	1

	b a x	a
0	0 0 0	1
1	0 0 1	1
2	0 1 0	1
6	1 1 0	1

	b a x	y
4	1 0 0	1
5	1 0 1	1
6	1 1 0	1
7	1 1 1	1



	b a x	b
Gruppe 0:
0	0 0 0	1
Gruppe 1:
2	0 1 0	1
4	1 0 0	1
Gruppe 2:
6	1 1 0	1

0:2		0 - 0
0:4		- 0 0
2:6		- 1 0
4:6		1 - 0

0:2		0 - 0
4:6		1 - 0
0:4		- 0 0
2:6		- 1 0

0:2:4:6		- - 0
0:4:2:6		- - 0


0:2:4:6		- - 0

	b <= (not x)
	b <= (not (x))



	b a x	a
Gruppe 0:
0	0 0 0	1
Gruppe 1:
1	0 0 1	1
2	0 1 0	1
Gruppe 2:
6	1 1 0	1

0:1			0 0 -
0:2			0 - 0
2:6			- 1 0

			0	1	2	6
0:1			*	*
0:2			*		*
2:6					*	*

			0	1	2	6
0:1			*	*
2:6					*	*

	a <= (not b and not a) or
			(a and not x);
	a <= not (
				(b or a) and
				(not a or x)
			);


	b a x	y
Gruppe 1:
4	1 0 0	1
Gruppe 2:
5	1 0 1	1
6	1 1 0	1
Gruppe 3:
7	1 1 1	1

4:5		1 0 -
4:6		1 - 0
5:7		1 - 1
6:7		1 1 -


4:5		1 0 -
6:7		1 1 -
4:6		1 - 0
5:7		1 - 1

4:5:6:7		1 - -
4:6:5:7		1 - -

	y <= b
	y <= not (not b)


	b <= (not x)
	a <= (not b and not a) or
			(a and not x);
	y <= b

library ieee;
use ieee.std_logic_1164.all;

entity meinuebergangsschaltnetz0052 is
port (
	bout, aout: out std_logic;
	b, a, x: in std_logic
);
end;

architecture verhalten meinuebergangsschaltnetz0052 is
begin
	bout <= (not x)
	aout <= (not b and not a) or
			(a and not x);
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinausgangsschaltnetz0052 is
port (
	y: out std_logic;
	b, a, x: in std_logic
);
end;

architecture verhalten of meinausgangsschaltnetz0052 is
begin
	y <= b
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinautomat0052testbench is
port (
	bout, aout: out std_logic;
	y: out std_logic
);
end;

architecture verhalten meinautomat0052testbench is
	component meinuebergangsschaltnetz0052
	port (
		bout, aout: out std_logic;
		b, a, x: in std_logic
	);
	end component;
	component meinausgangsschaltnetz0052
	port (
		y: out std_logic;
		b, a, x: in std_logic
	);
	end component;
	signal b, a, x: std_logic;
begin
	sn1: meinuebergangsschaltnetz0052 PORT MAP (b=>b, a=>a, x=>x, bout=>bout, aout=>aout);
	sn2: meinausgangsschaltnetz0052 PORT MAP (b=>b, a=>a, x=>x, y=>y);


	x <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	a <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	b <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;
end;

[code]

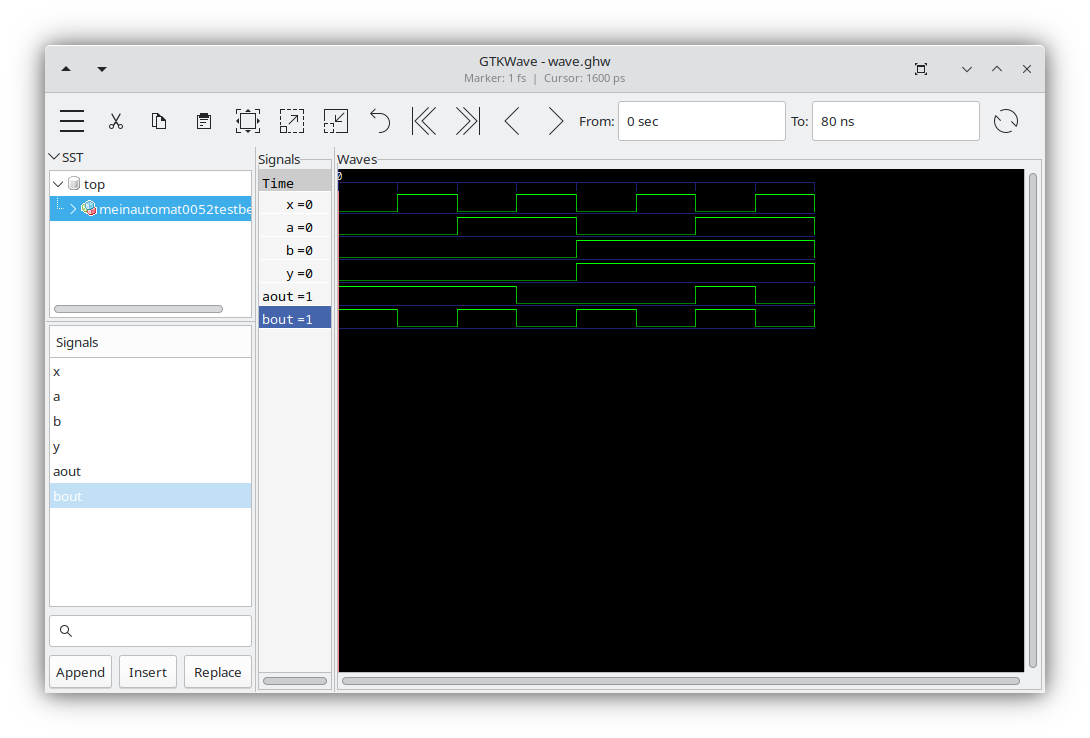

[img] https://www.ituenix.de/nextcloud/data/dave/files/Documents/david4/2023-12-20/Screenshot_20231220_230341.png [/img]

[code]
	b a x	b a y
0	0 0 0	1 1 0
1	0 0 1	0 1 0
2	0 1 0	1 1 0
3	0 1 1	0 0 0
4	1 0 0	1 0 1
5	1 0 1	0 0 1
6	1 1 0	1 1 1
7	1 1 1	0 0 1

Image Screenshot_20231220_230341

library ieee;
use ieee.std_logic_1164.all;

entity meinuebergangsschaltnetz0052 is
port (
	bout, aout: out std_logic;
	b, a, x: in std_logic
);
end;

architecture verhalten of meinuebergangsschaltnetz0052 is
begin
	bout <= (not x);
	aout <= (not b and not a) or
			(a and not x);
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinausgangsschaltnetz0052 is
port (
	y: out std_logic;
	b, a, x: in std_logic
);
end;

architecture verhalten of meinausgangsschaltnetz0052 is
begin
	y <= b;
end;

library ieee;
use ieee.std_logic_1164.all;

entity meinautomat0052testbench is
port (
	bout, aout: out std_logic;
	y: out std_logic
);
end;

architecture verhalten of meinautomat0052testbench is
	component meinuebergangsschaltnetz0052
	port (
		bout, aout: out std_logic;
		b, a, x: in std_logic
	);
	end component;
	component meinausgangsschaltnetz0052
	port (
		y: out std_logic;
		b, a, x: in std_logic
	);
	end component;
	signal b, a, x: std_logic;
begin
	sn1: meinuebergangsschaltnetz0052 PORT MAP (b=>b, a=>a, x=>x, bout=>bout, aout=>aout);
	sn2: meinausgangsschaltnetz0052 PORT MAP (b=>b, a=>a, x=>x, y=>y);


	x <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	a <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	b <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;
end;


-- Ah geil, es hat funktioniert!!!
-- Es tut!!!
-- Ich probiere jetzt einen Ripple Carry Adder

library ieee;
use ieee.std_logic_1164.all;

entity meinschaltnetz is
port (
    a, b: in std_logic;
    y: out std_logic
);
end;

architecture verhalten of meinschaltnetz is
begin
    y <= a and b;
end;

library ieee;
use ieee.std_logic_1164.all;

entity meingrosseschaltnetz is
port (
    y: out std_logic_vector (31 downto 0);
    b, a: in std_logic_vector (31 downto 0)
);
end;

architecture verhalten of meingrosseschaltnetz is
    component meinschaltnetz
    port (
        a, b: in std_logic;
        y: out std_logic
    );
    end component;
begin
    l1:
        for i in 0 to 31 generate
            sn: meinschaltnetz PORT MAP (b=>b(i), a=>a(i), y=>y(i));
        end generate;
end;

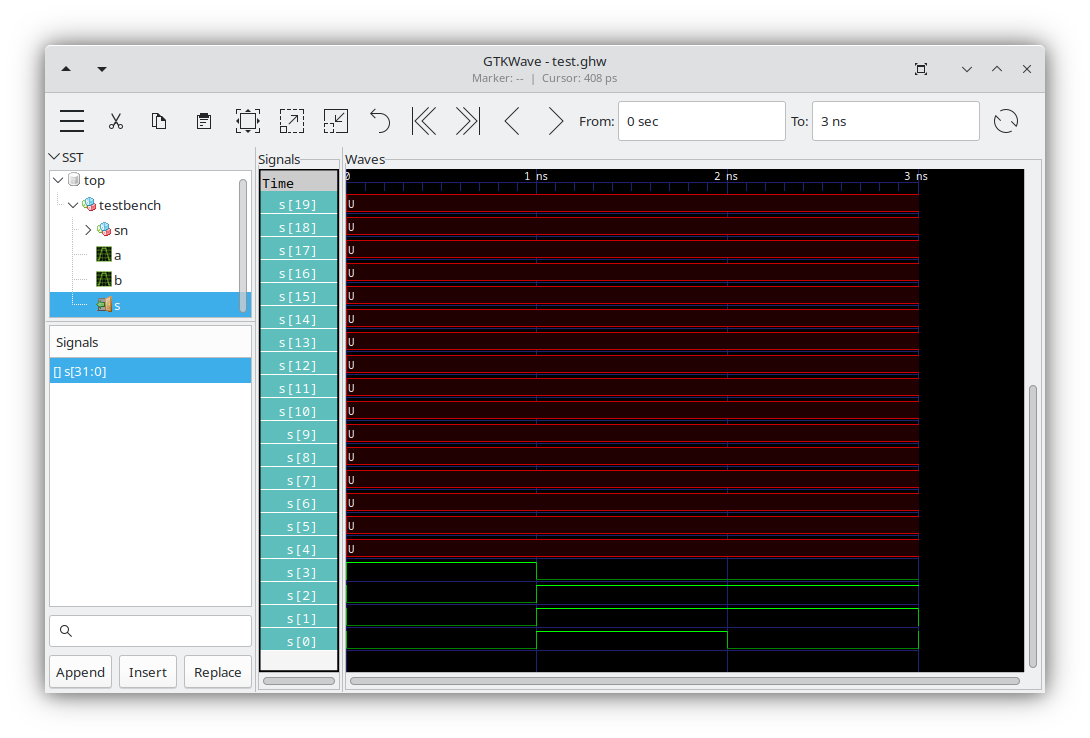

Image Screenshot_20231221_052336

--  Scheint mit dem Ripple Carry Adder zu funktionierern

library ieee;
use ieee.std_logic_1164.all;

entity fulladder is
port (
    a, b, c: in std_logic;
    s, u: out std_logic
);
end;

architecture verhalten of fulladder is
begin
    s <= a xor b xor c;
    u <= (a and b) or ((a or b) and c);
end;

library ieee;
use ieee.std_logic_1164.all;

entity ripplecarryadder is
port (
    s: out std_logic_vector (31 downto 0);
    b, a: in std_logic_vector (31 downto 0)
);
end;

architecture verhalten of ripplecarryadder is
    component fulladder
    port (
        a, b, c: in std_logic;
        s, u: out std_logic
    );
    end component;
    signal c : std_logic_vector (31 downto 0);
    signal u : std_logic_vector (31 downto 0);
begin
    c(0) <= '0';
    add1: fulladder PORT MAP (c=>c(0),b=>b(0),a=>a(0),s=>s(0),u=>u(0));
    l1:
        for i in 1 to 31 generate
            sn: fulladder PORT MAP (c=>u(i-1),b=>b(i),a=>a(i),s=>s(i),u=>u(i));
        end generate;
end;

library ieee;
use ieee.std_logic_1164.all;

entity testbench is
port (
    s: out std_logic_vector (31 downto 0)
);
end;

architecture verhalten of testbench is
    component ripplecarryadder
        port (
            s: out std_logic_vector (31 downto 0);
            b, a: in std_logic_vector (31 downto 0)
        );
    end component;
    signal b, a: std_logic_vector (31 downto 0);
begin
    sn: ripplecarryadder PORT MAP (b=>b, a=>a, s=>s);
    a (0) <= '1' after 0 ns, '0' after 1 ns , '1' after 2 ns, '0' after 3 ns;
    b (0) <= '1' after 0 ns;

    a (1) <= '1' after 0 ns, '0' after 2 ns;
    b (1) <= '0' after 0 ns;

    a (2) <= '0' after 0 ns;
    b (2) <= '1' after 0 ns;

    a (3) <= '1' after 0 ns;
    b (3) <= '1' after 0 ns;

end;

Image Screenshot_20231221_052336

a (0) <= '1' after 0 ns, '0' after 1 ns , '1' after 2 ns, '0' after 3 ns;
    b (0) <= '1' after 0 ns;

    a (1) <= '1' after 0 ns, '0' after 2 ns;
    b (1) <= '0' after 0 ns;

    a (2) <= '0' after 0 ns;
    b (2) <= '1' after 0 ns;

    a (3) <= '1' after 0 ns;
    b (3) <= '1' after 0 ns;

-- wenn man das anguckt und das bild, dann scheint das gut zu funktionieren
