quine20250329.vhdl

Videos zu TTL schaltungen - bitte bringen sie sie selbst mti der richtigen reihenfolge in verbindung

Bilder zu TTL schaltungen - bitte bringen sie sie selbst mti der richtigen reihenfolge in verbindung

-- (C) David Vajda
-- Sat Mar 29 17:28:46 2025

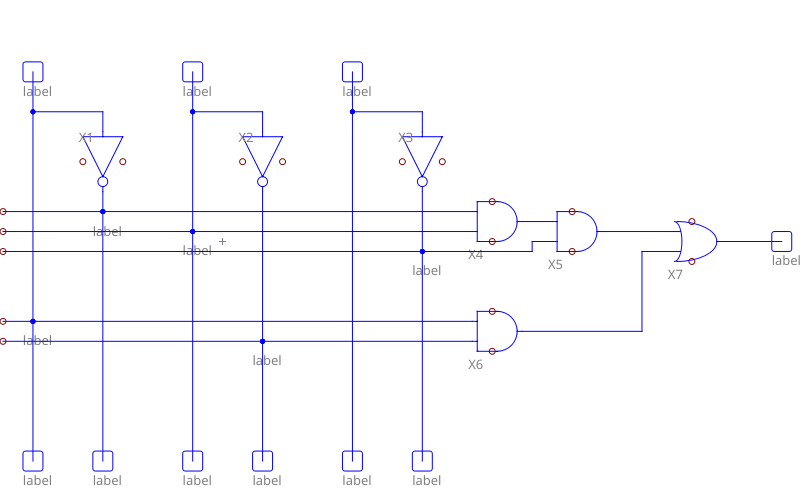

-- 3 Network - TTL - Disjunktive Normalform


library ieee;
use ieee.std_logic_1164.all;

entity quine20250329 is
port (
	x2, x1, x0: in std_logic;
	y: out std_logic
);
end;

architecture behaviour of quine20250329 is
begin
	y	<=	(not x2 and x1 and not x0) or
			(x2 and not x1);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine20250329testbench is
port (
	y: out std_logic
);
end;

architecture behaviour of quine20250329testbench is
	component quine20250329
	port (
		x2, x1, x0: in std_logic;
		y: out std_logic
	);
	end component;
	signal x2, x1, x0: std_logic;
begin
	q: quine20250329 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);
	x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

	x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;
end;
