Das neue

(C) David Vajda
Fri Dec 13 12:41:41 2024

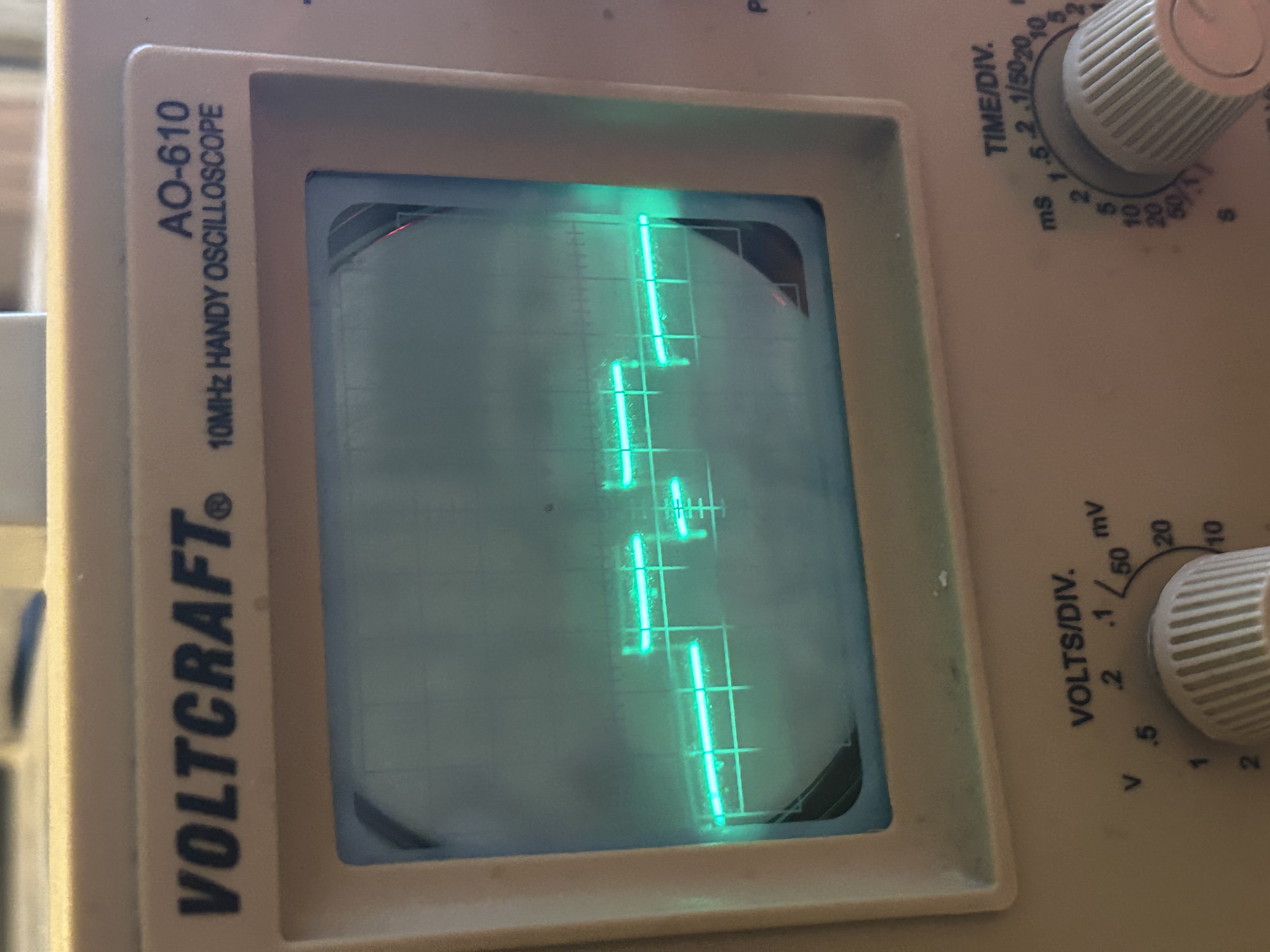

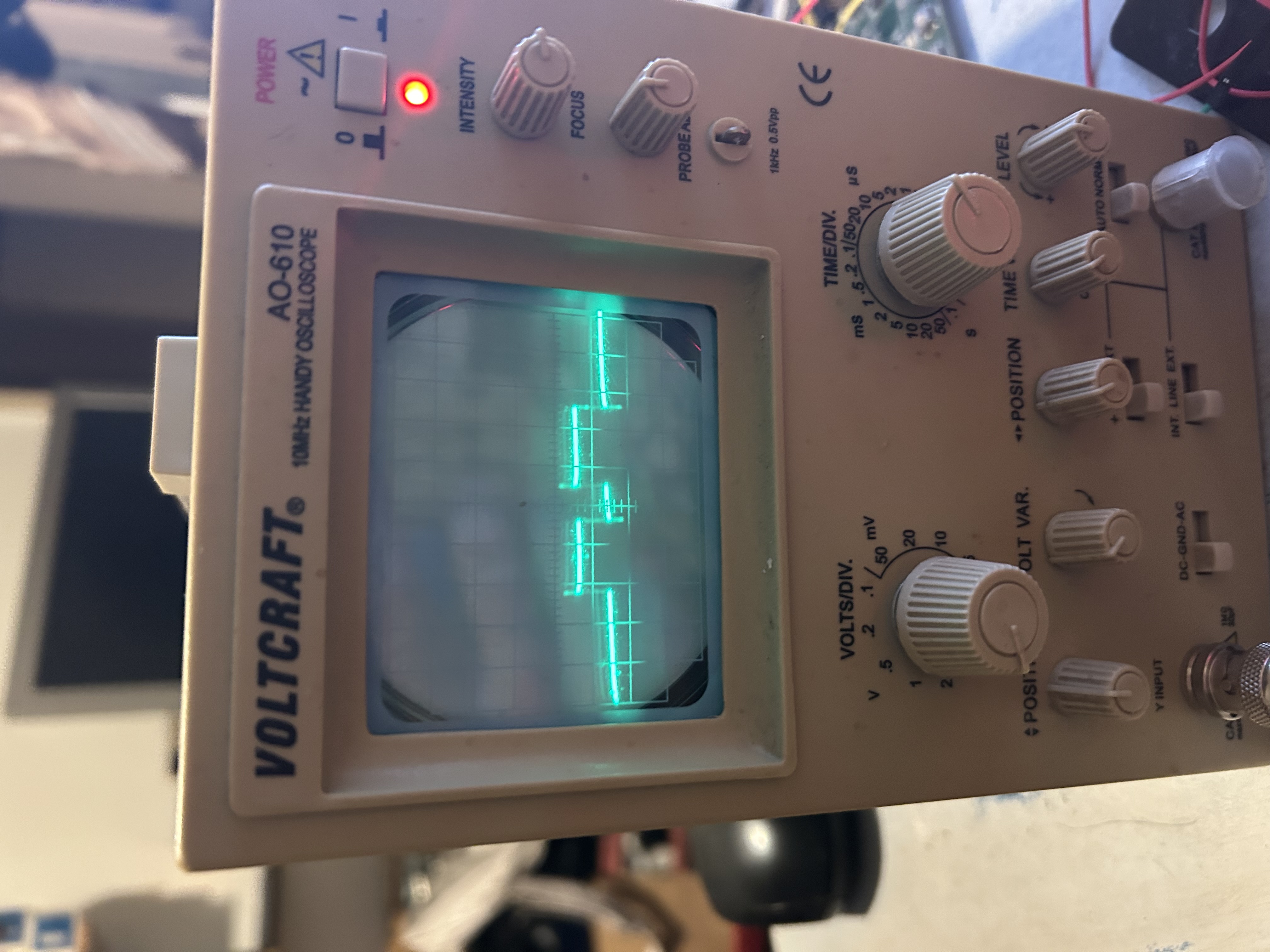

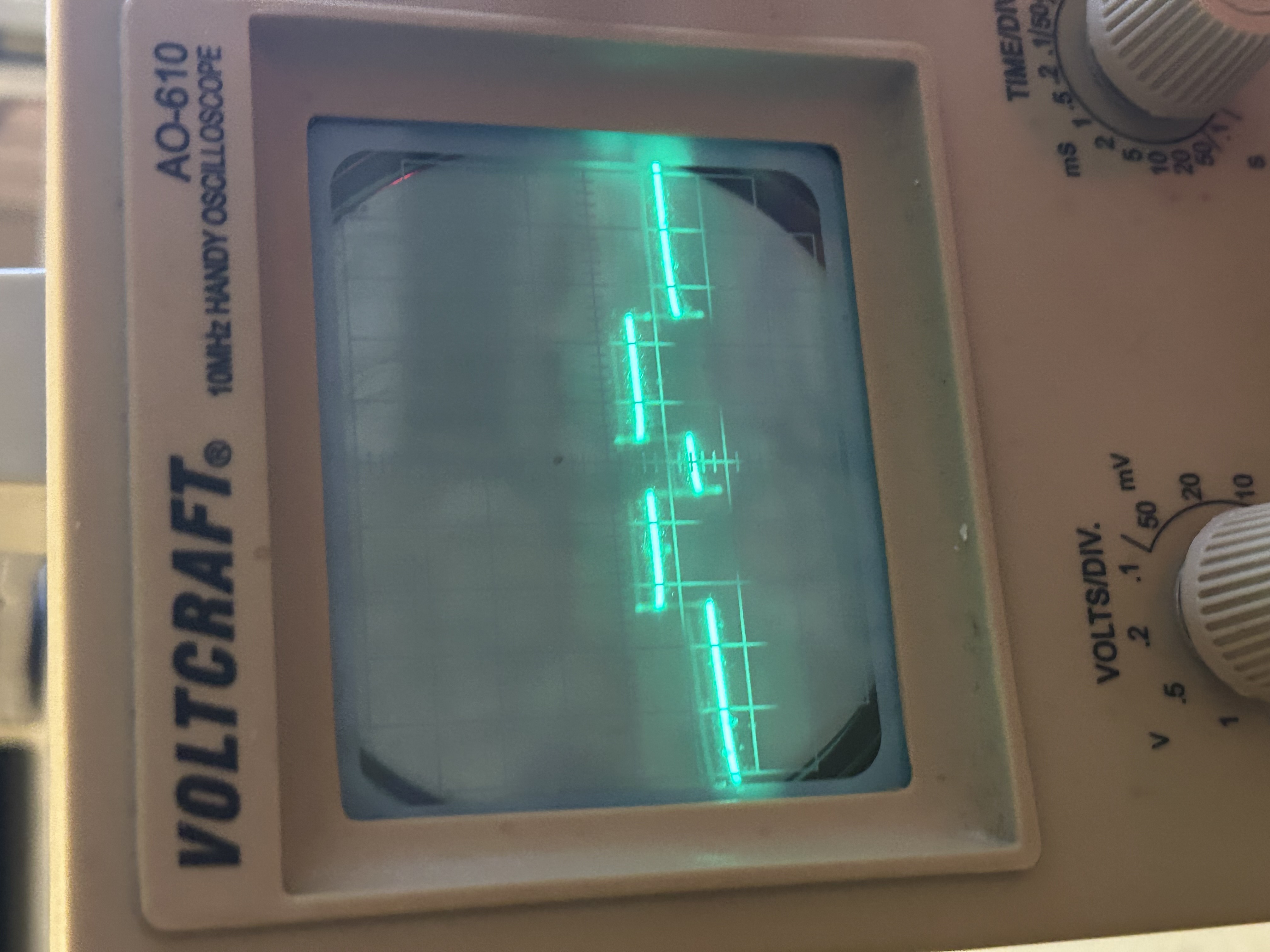

3 Network - TTL - Disjunktive Normalform

    x2  x1  x0  y
 0  0   0   0   0
 1  0   0   1   0
 2  0   1   0   0
 3  0   1   1   1
 4  1   0   0   1
 5  1   0   1   0
 6  1   1   0   1
 7  1   1   1   1


    x2  x1  x0  y
 3  0   1   1   1
 4  1   0   0   1
 6  1   1   0   1
 7  1   1   1   1

    x2  x1  x0  y
 4  1   0   0   1
 6  1   1   0   1
 3  0   1   1   1
 7  1   1   1   1

    x2  x1  x0  y
Gruppe 1:
 4  1   0   0   1
Gruppe 2:
 6  1   1   0   1
 3  0   1   1   1
Gruppe 3:
 7  1   1   1   1

1:6     1   -   0
6:7     1   1   -
3:7     -   1   1

        1   3   6   7
1:6     +       +
6:7             +   +
3:7         +       +


        1   3   6   7
1:6     +       +
3:7         +       +

1:6     1   -   0
3:7     -   1   1

    y   <=  (x2 and not x0) or
            (x1 and x0);

library ieee;
use ieee.std_logic_1164.all;

entity quine3_20241213 is
port (
    x2, x1, x0: in std_logic;
    y: out std_logic
);
end;

architecture behaviour of quine3_20241213 is
begin
    y   <=  (x2 and not x0) or
            (x1 and x0);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine3_20241213testbench is
port (
    y: out std_logic
);
end;

architecture behaviour of quine3_20241213testbench is
    component quine3_20241213
    port (
        x2, x1, x0: in std_logic;
        y: out std_logic
    );
    end component;
    signal x2, x1, x0: std_logic;
begin
    q: quine3_20241213 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);

VHDL-Code:

library ieee;
use ieee.std_logic_1164.all;

entity quine3_20241213 is
port (
    x2, x1, x0: in std_logic;
    y: out std_logic
);
end;

architecture behaviour of quine3_20241213 is
begin
    y   <=  (x2 and not x0) or
            (x1 and x0);
end;

library ieee;
use ieee.std_logic_1164.all;

entity quine3_20241213testbench is
port (
    y: out std_logic
);
end;

architecture behaviour of quine3_20241213testbench is
    component quine3_20241213
    port (
        x2, x1, x0: in std_logic;
        y: out std_logic
    );
    end component;
    signal x2, x1, x0: std_logic;
begin
    q: quine3_20241213 PORT MAP (x2=>x2, x1=>x1, x0=>x0, y=>y);

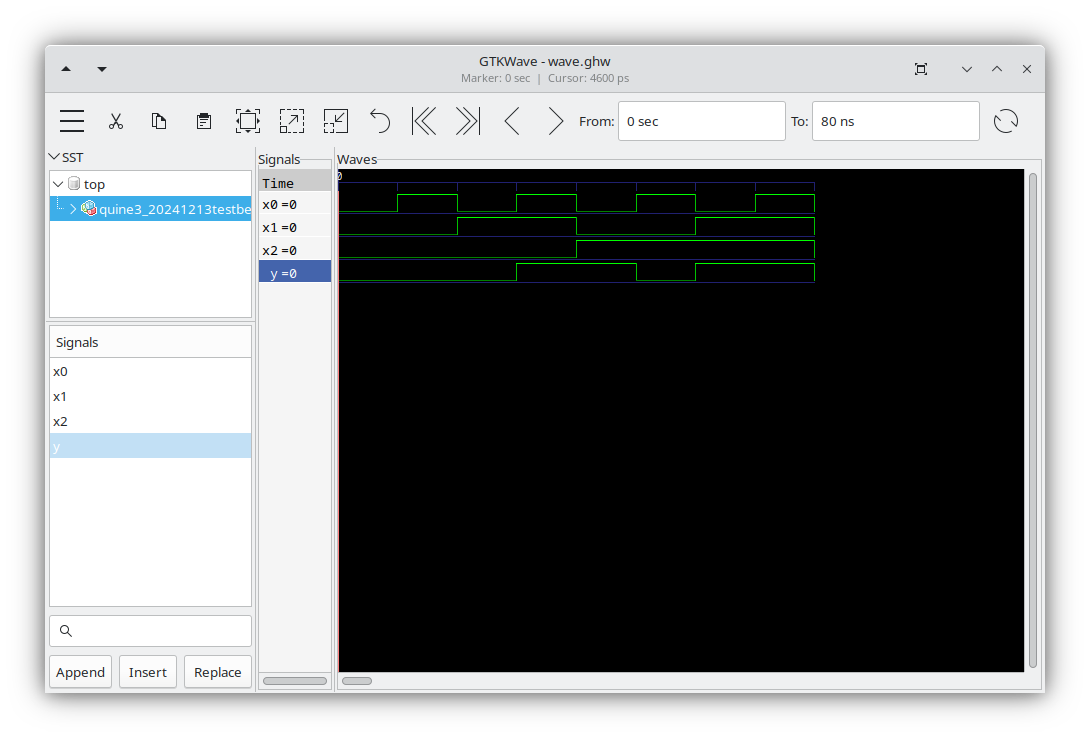

    x0 <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns, '1' after 30 ns, '0' after 40 ns, '1' after 50 ns, '0' after 60 ns, '1' after 70 ns, '0' after 80 ns;

    x1 <= '0' after 0 ns, '0' after 10 ns, '1' after 20 ns, '1' after 30 ns, '0' after 40 ns, '0' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;

    x2 <= '0' after 0 ns, '0' after 10 ns, '0' after 20 ns, '0' after 30 ns, '1' after 40 ns, '1' after 50 ns, '1' after 60 ns, '1' after 70 ns, '0' after 80 ns;
end;
